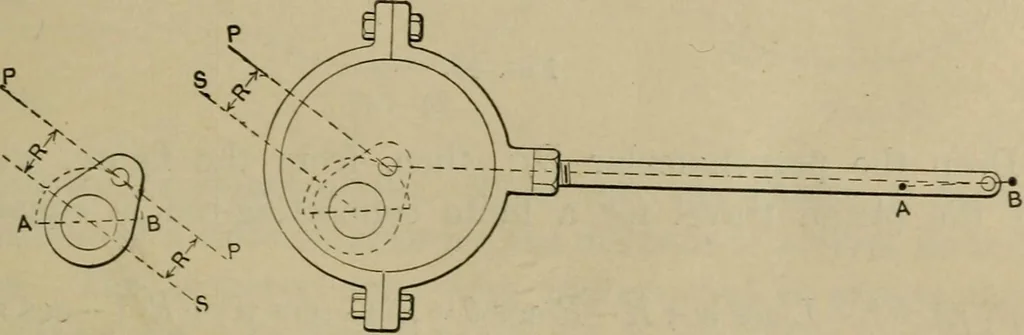

s essential that theseelements be properly applied. CHAPTER IV. ZEUXER AND BILGRAM VALVE-DIAGRAMS AND DESIGNOF PLAIN SLIDE-VALVES. The Throw of Cranks and Eccentrics (Figs. 53 and 54;.—■The throw or radius of a crank is the distance from the centerof the crank-pin to the center of its shaft or the… … Fig. 53. Fig. 54. of the crank-pin till its periphery extends beyond the shaft asin Fig. 54. This form of crank is called an eccentric. Its throw or eccentricity is the distance from the center ofthe shaft to the center of the eccentric or the distance SP inFig. 54. The eccentricity or throw of an…
