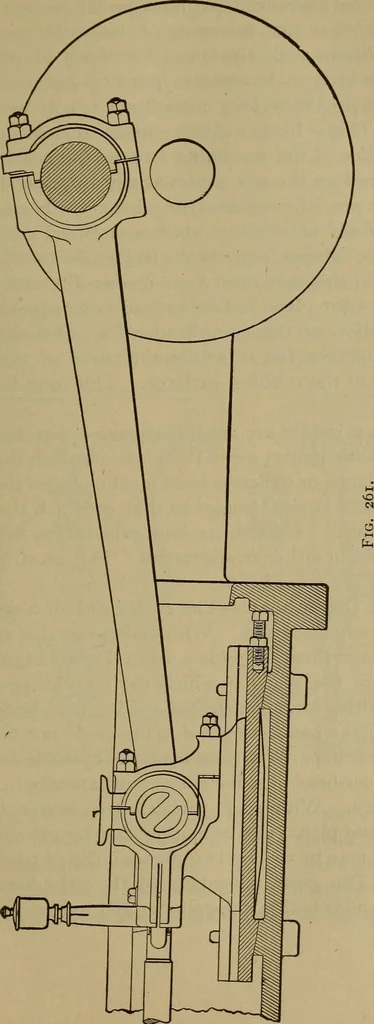

Fig. 260.or supported as to resist the tendency to deflect. To resistabrasion they are often case-hardened, and to resist deflectionthey are often made thicker as the distance from the support-ing ends increases. Where but one guide is used it will appear in one of twoforms. In the first form the… … SH MECHANICAL ENGINEERING OE POWER PLANTS. below it. The cross-head pin must be far enough below theguide (Fig. 260) so that the swing of the connecting-rod at itswidest amplitude shall clear it. This form of cross-head isused quite a little in locomotive practice, but care must betaken that it…
