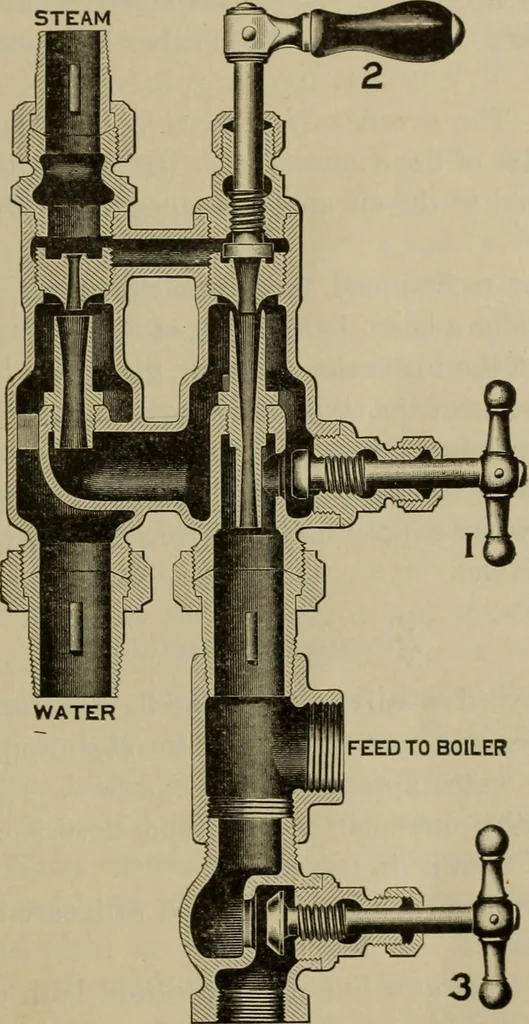

cting. Steam, water, delivery, and overflow connections are as illus-trated. Steam.—Take steam direct from the dome or highest part ofthe boiler and not from a pipe furnishing steam for other purposes. SMALL AUXILIARIES. 295 Place a globe valve in the steam-pipe for a starting-valve, andbefore… … OVERFLOWFig. 155.—Hancock Inspirator. The size of the suction-pipe should be in proportion to itslength. For a high lift or long trail, use pipe one or two sizeslarger than the suction connections. The suction-pipe should beas nearly straight as possible. Never use a foot-valve, as the water should…
