Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 192

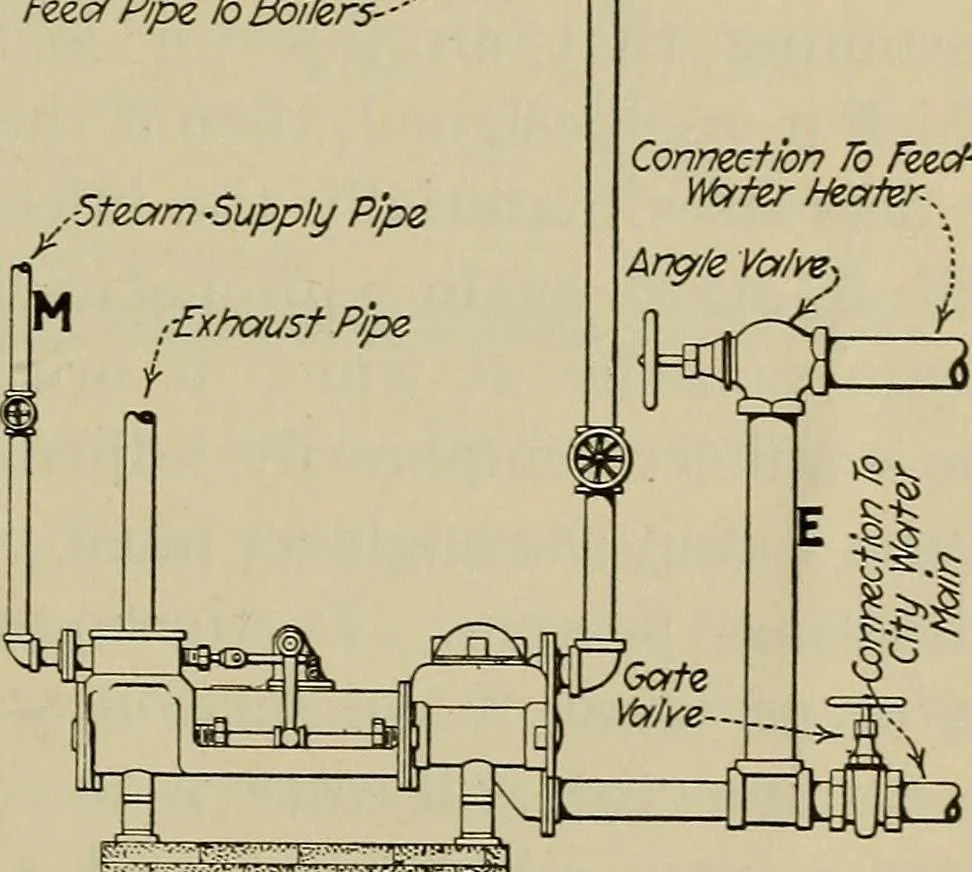

ding devices. Direct-acting steam pumps (Div. 2), crank-action pumps variously arranged and driven (Div. 3) and centrifugal pumps (Div. 4) are all used for boiler-feeding as will be explained herein. A few years ago the direct-acting steam t> [p\ pump was the most widely used variety… … \\\^\\\\\\\\\\\\\\\^ Fig. 192. -A Direct-Acting Steam Pump ForBoiler Feeding. Note.—The general rulesfor piping the principal de-vices which are used in boiler-feeding are similar to those forsteam piping. (See Div. 11 for types of joints, specifications and allowable pressures.) There areusually…
Steam power plants · Pumping machinery
