Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 339

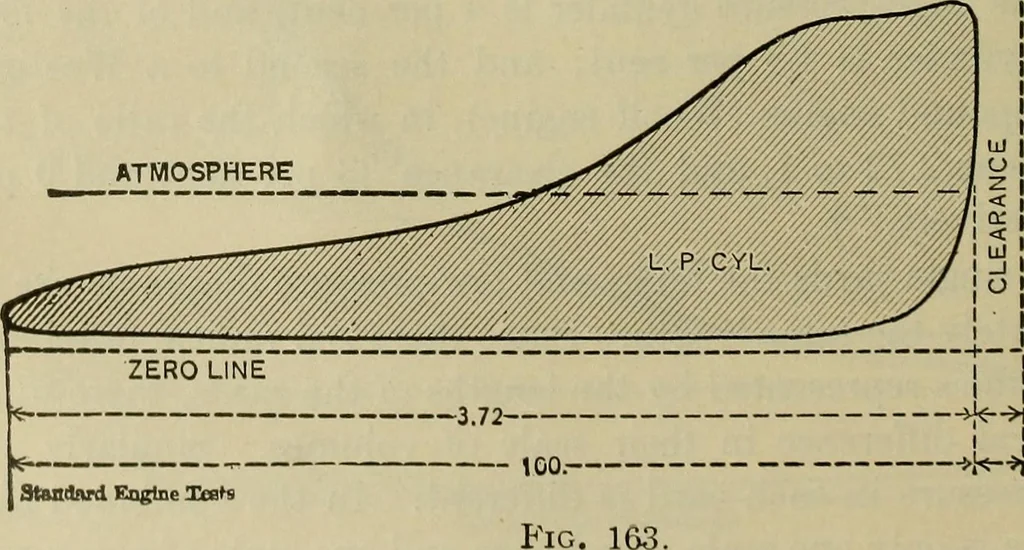

le cards the high- and low-pressure diagrams are ofapproximately the same length. Since there is a radical differencein the volumes represented by the lengths of the cards, there mustbe a radical difference in their scale of volumes. Similarly thescale of pressure in each card is different. In the… … 120 110 100 90 30 70 60 50 40 30 20 10 - 0 - 10 14.7 -»{<>} 0.178,-»!«-*! 4.3J5-Q.4B MCLTIPLE-EXPAXSIOX EXGIXES. .310 To Draw the Combined Diagram.—Draw any line to representthe clearance line as in Fig. 163. Perpendicular to it, at any givenpoint, erect a line, called the zero line, whose…
Steam-engines · Heat-engines
