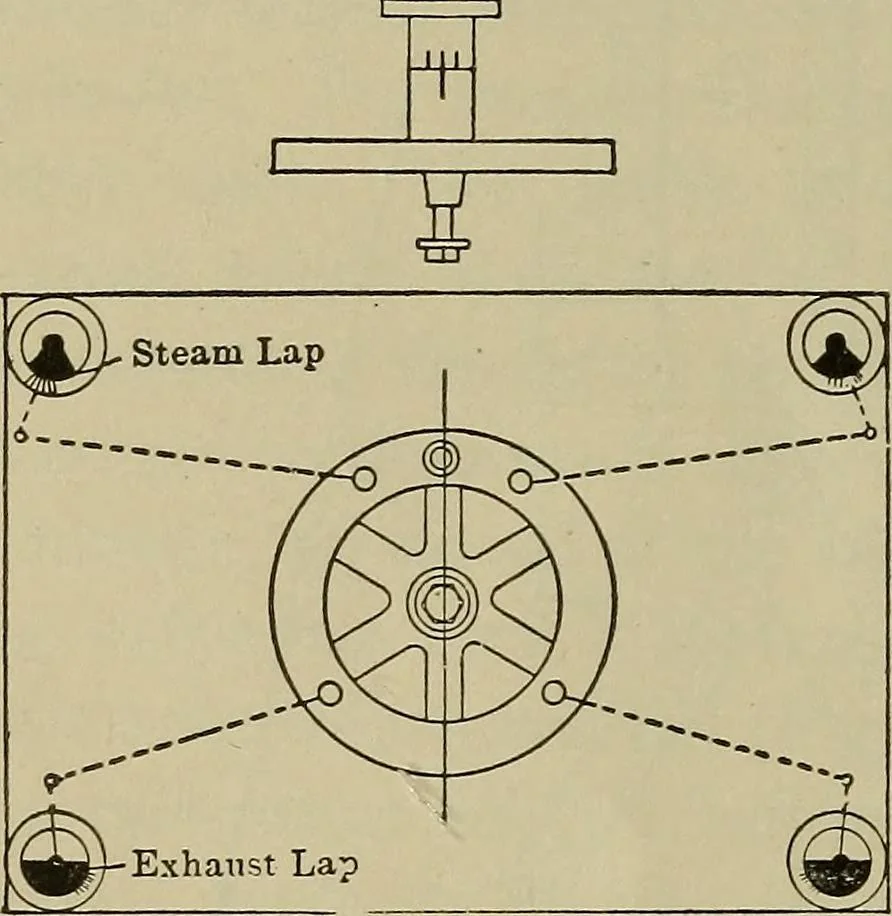

Fig. 195.—Corliss Engine. (From Peabodys Valve-gears.) 368 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. exhaust-valve due to changes in the relative position of the linksOa, a\d\, diiv for movement of the wrist-plate through equal paitsof the arc aia2. An examination of the automatic method of detaching… … ? J ? y^-<) ~J?f\o\~ A° \7 / B_ Fig. 196. Fig. 197. movement of 90 degrees in each stroke, i.e., while Tin is rising.We are at liberty to choose the position of these 90 degrees in asemi-revolution if the steam- and exhaust-valves are operated byindependent eccentrics. If, however, only one…
