Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 87

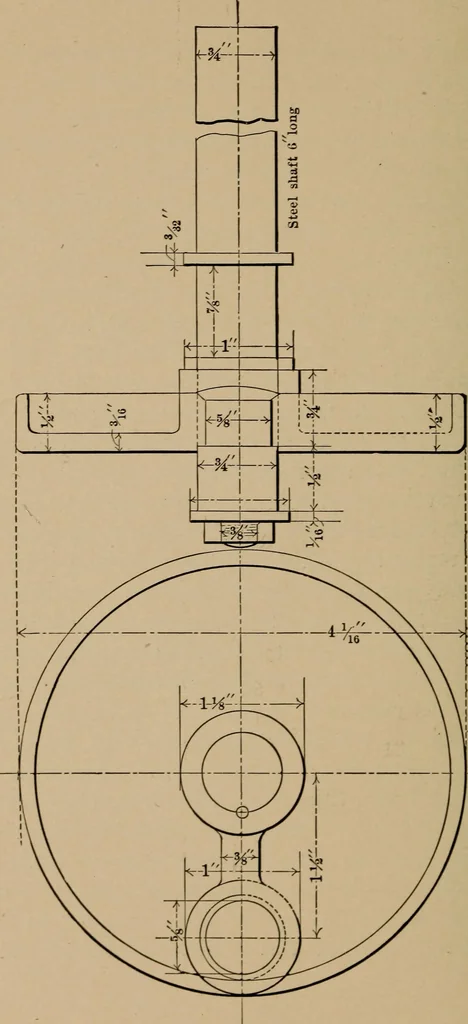

rilled ; without this pre-caution the cylinder and guide-flanges might beset on a cock-bill. Now let us take the crank-disk in hand ; this,also, will require careful work. Turn the faceoutside and on the edge, all over, then put theface side next the face-plate, and bore the shaft-hole, and face… … Fig. 18. SMALL ENGINES AND BOILERS. 71 and lay out a f hole on this centre, and centre iton the face-plate so that it is ready for boring. Much depends on the integrity of this job ; forif the crank-pin is not absolutely square with theshaft, the engine will never work silently. Thecrank-pin being…
Steam-engines
