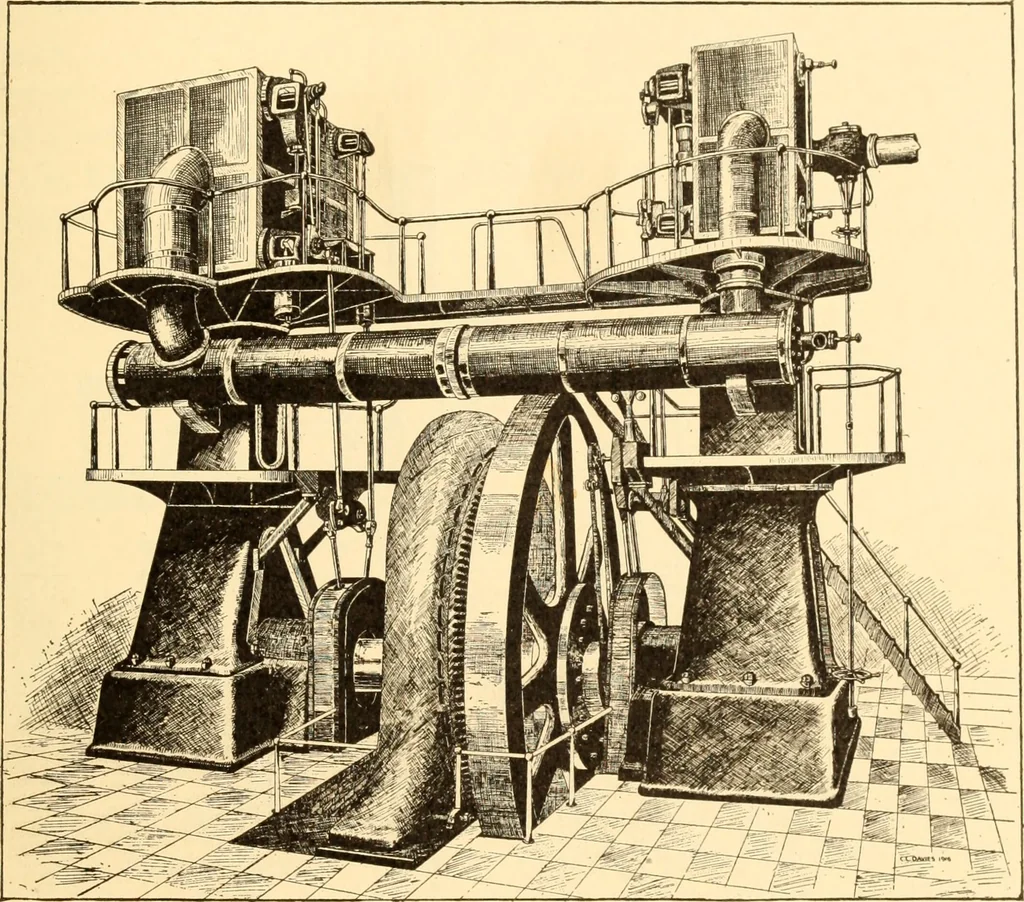

rther. In a triple expan- PRINCIPLES OF THE STEAM ENGINE 7 sion engine the total expansion of the steam is divided into threeparts, each being performed in a separate cyUnder, while in aquadruple expansion engine the total expansion of the steam isdivided into four parts, each being performed in a… … FiG. 3. sion of the steam into parts and also the construction of multipleexpansion engines will be taken up in a later chapter. A condensing engine is one in which the exhaust steam ischanged into water. Since the water thus formed occupiesless space than the exhaust steam the back pressure…
