Steam engines, prepared in the Extension division of the University of Wisconsin (1919)

Shealy, Edward Marvin · New York, McGraw-Hill · leaf 266

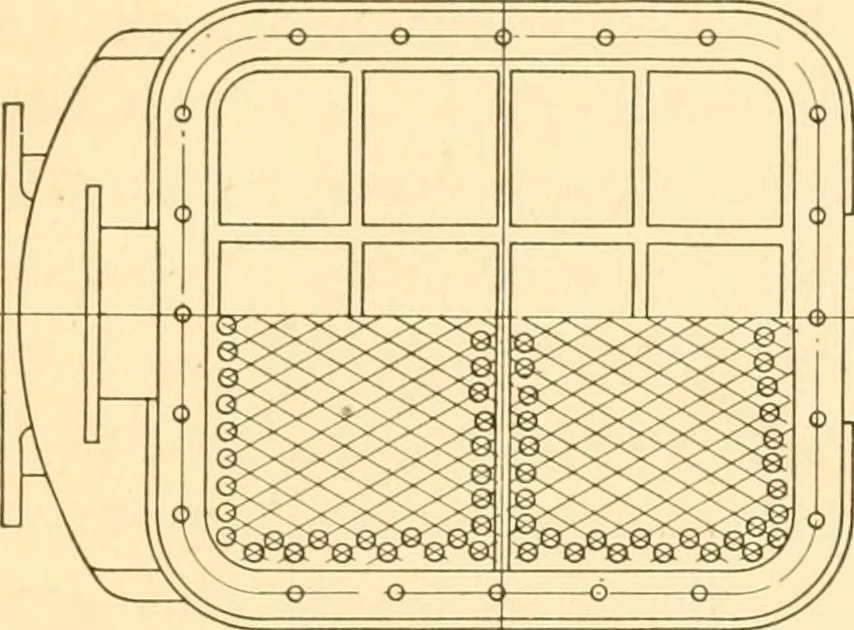

An illustration from Steam engines, prepared in the Extension division of the University of Wisconsin, 1919, leaf 266 — the outside, although in a number ofmakes of surface condensers the condensing water is on theoutside and the steam on the inside of the tubes. The tubes areusually made of brass because this metal conducts heat betterthan iron. A typical example of a surface condenser is illustrated in Fig.157…
