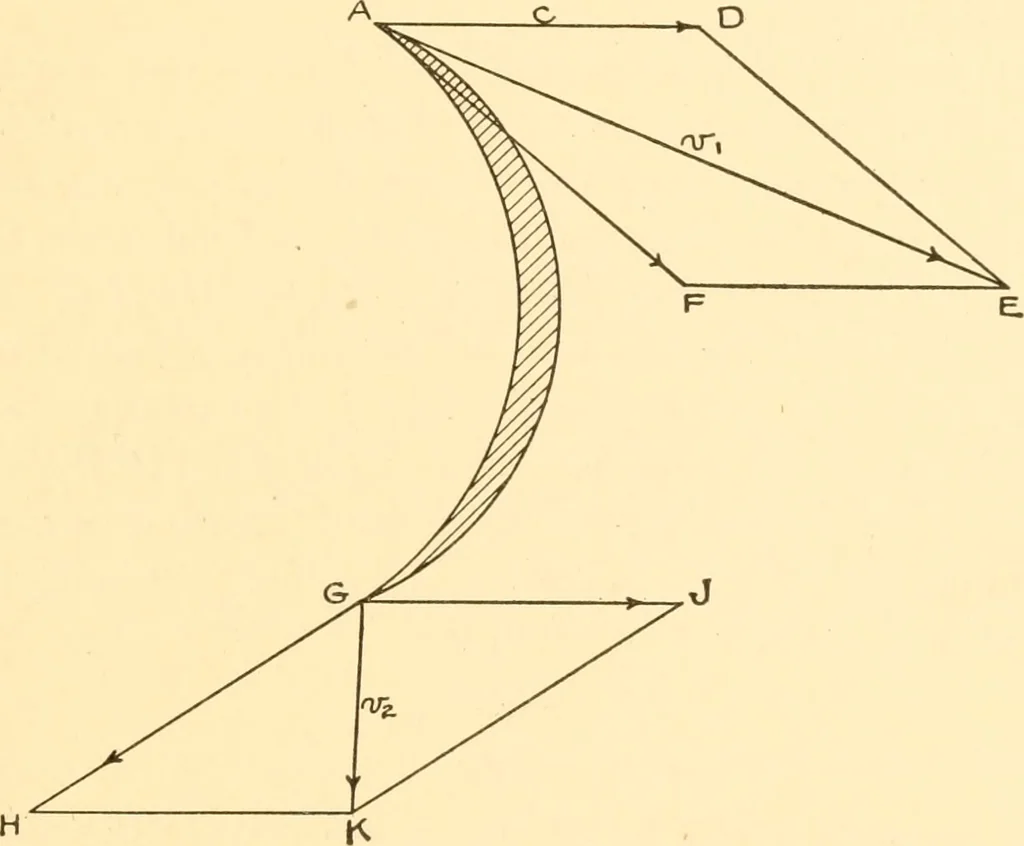

sents the ve-locity of the person relative to the train. Applying the same kind of diagram to the case of a stream ofsteam passing over the surface of a vane of a steam turbine wewould have a figure similar to the one shown in Fig. 167. In thisdiagram the curved line AG represents the curved… … Fig. 167. the velocity of the steam with respect to the surface of the vane.That is, instead of the entire velocity of the steam AE beingeffective in creating pressure against the vane, there is only thevelocity AF to produce this pressure. Consider next what happens to the velocity as the stream…
