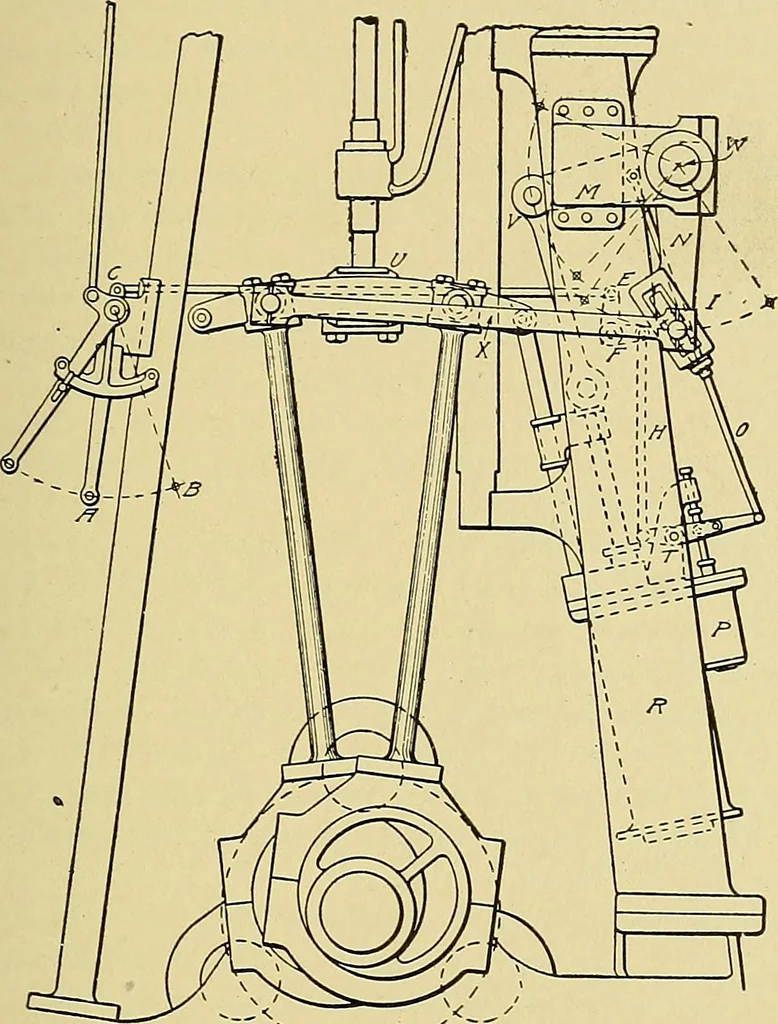

ot be done by hand. Consequently, in someinstances a small steam power cylinder is attached to the reversinggears to move them. This apparatus is called the steam-startinggear and is under the control of the engineer. STEAM ENGINES 85 The action of this gear, Fig. 64, is as follows: When the… … Fig. 64. Details or Steam Starting Gear 0 moves downward, thus causing the arm M to move downward andthe arm N to move to the right. This movement of the arm A^ andpin / causes a corresponding movement to the right of the reach rodand link, to which it is connected. Thus it is readily seen that…
