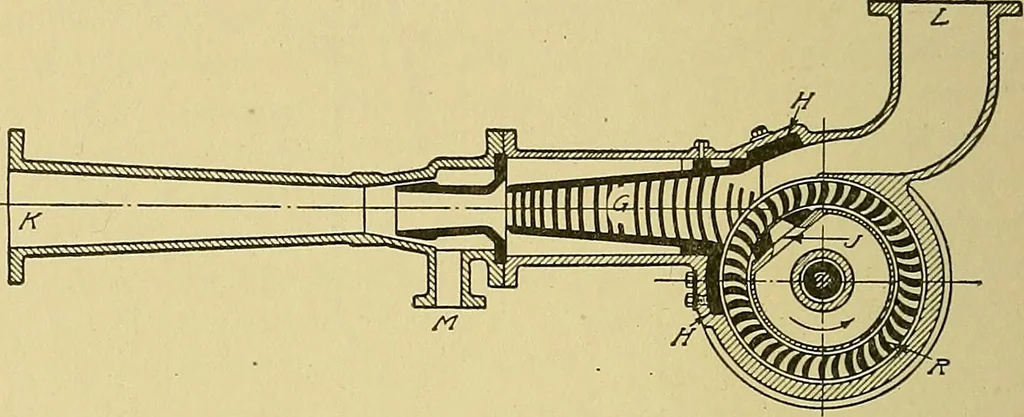

is the separate water supply for this air pump, shown more indetail by Fig. 82, which is a cross section on ^ ^. In Fig. 82, the water entering through the center of the pumpis discharged through the orifice J into a tapering pipe, the waterbeing emitted in a succession of layers, as indicated at… … Fig. 82. Section of Leblanc Condenser Taken through AA, Rg. 81Courtesy of Westinohouse Machine Company, East Pittsburgh, Pennsylvania Since the cooling water enters by virtue of tlie vacuum, anaccidental stopping of the pumps might cause serious trouble, dueto the water rising above the top of the…
