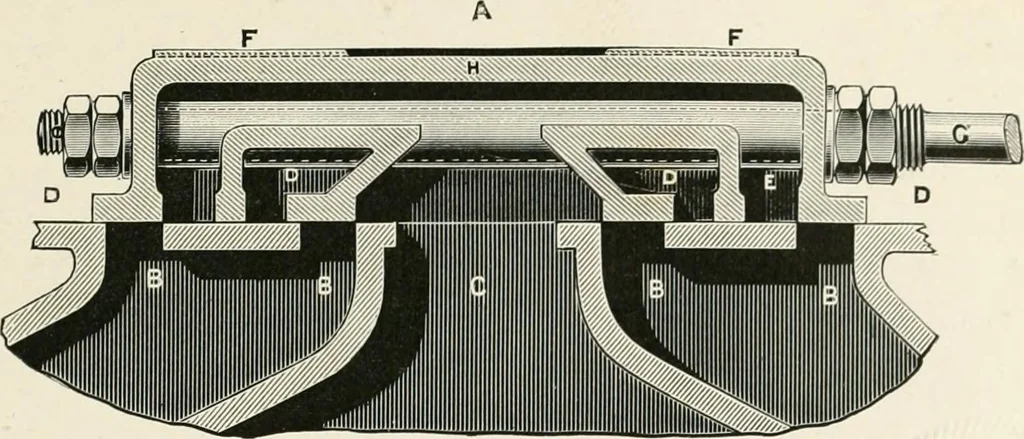

through the exhaust pipe into thenext cylinder. Balance Piston.—It is customary in some cases to fit a smallcylinder in the casing over the slide valve in which a pistonconnected to the valve rod works. Steam acting on the underside of this piston has a constant tendency to lift the valve andso… … Fig. 85.—Section of Double Ported Slide Valve. (Page 19;.)
