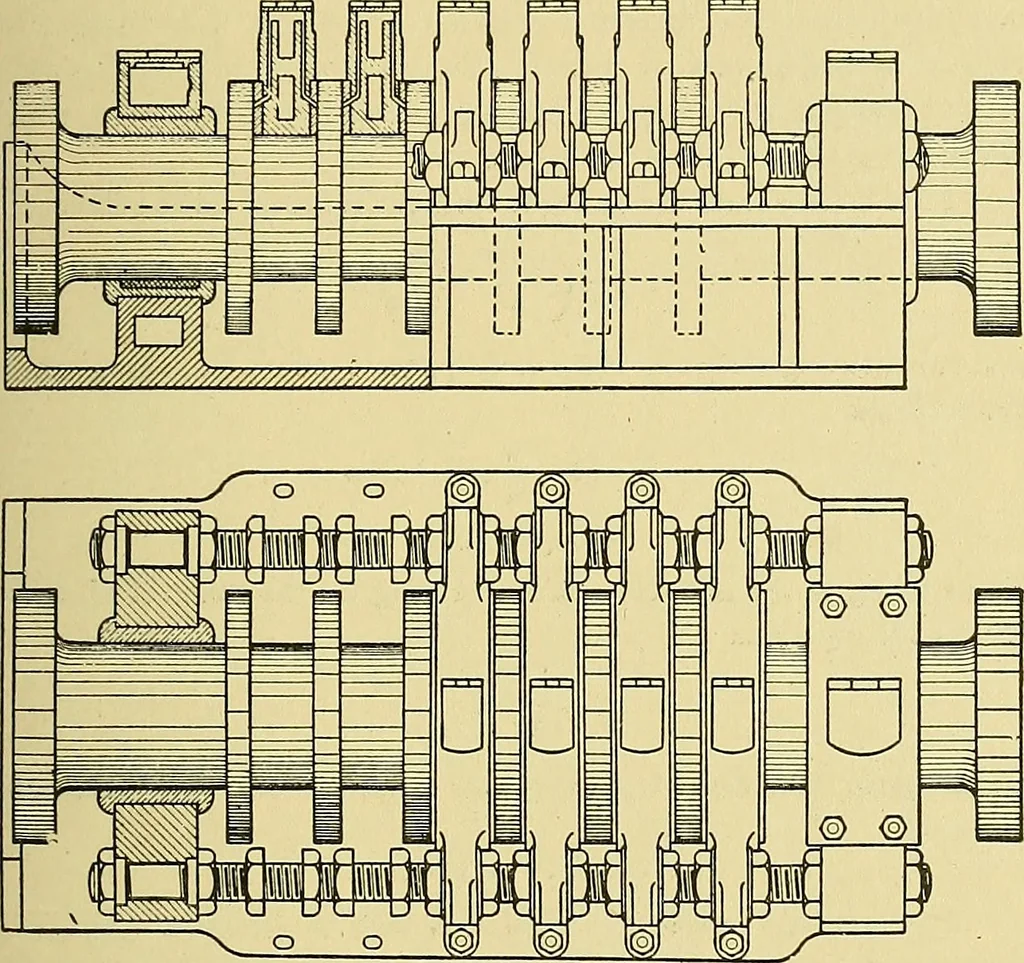

revolving propeller in screw-propelled vessels. The propeller shaft STEAM ENGINES 83 is turned with the collars C as a part of it. The cast-iron box Ris secured to the frame of the vessel just aft of the main engines, andthe cap G is bolted to it, as shown. The collars C press against ringsB of gun… … Fig. 63. Type of Thrust Bearing in Which Pn on Is Made for Taking Up Wear are provided for water cooling when needed. Water may also becirculated through the base. Fig. 62 shows the principle of the thrust bearing, but it is n6tmuch used because no provision is made for taking up unequal…
