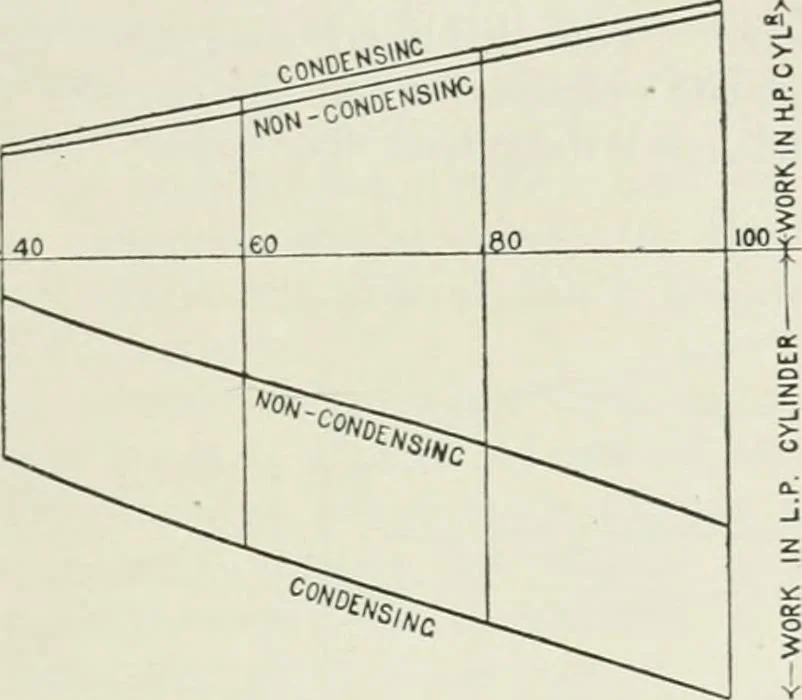

Fig. 151. COMPOUND ENGINES. 13: show the effect of throttling. Fig. 149 is for a condensing engine,and Fig. 150 for a non-condensing engine. The dotted shaded areasshow the work areas when the initial pressure has been reduced bythrottling the steam-supply to the high-pressure cylinder. The…
