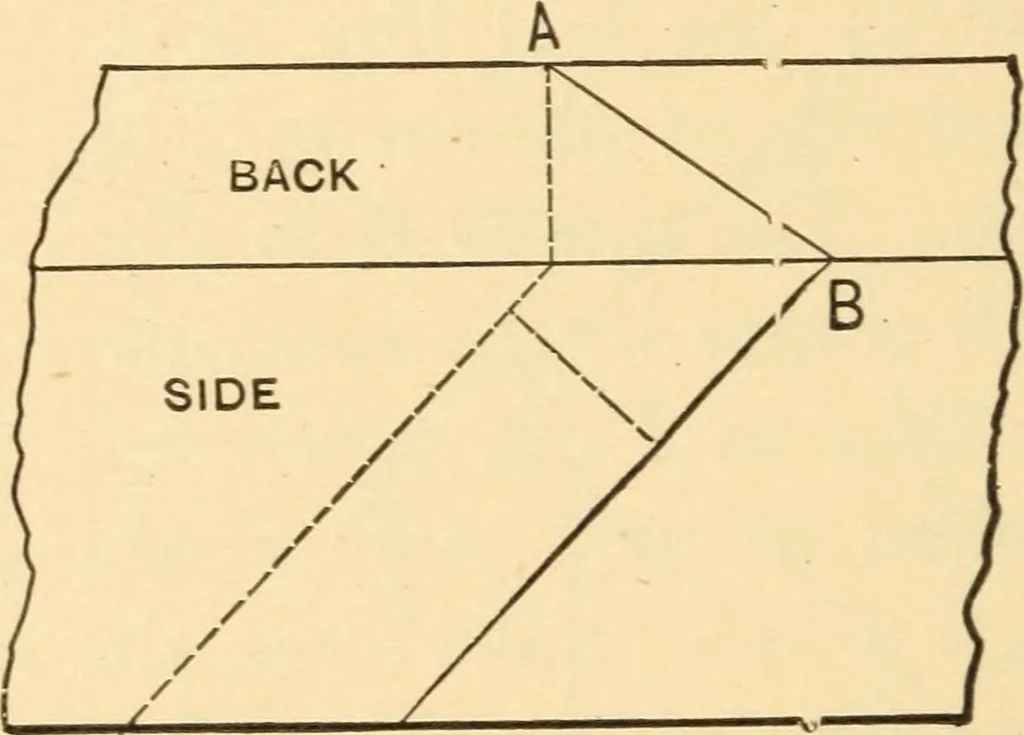

Awith B, and the lines to follow in cutting are A B C.This plan is worth remembering, as it will work onroofs of any pitch, and, in fact, will cut the bevelacross the back of any rafter which cuts on a bevel. Itis the plumb cut and the thickness of the rafter appliedin the manner described that… … framing is of but little Fig. 60._Obtainmg Bevel Acrossimportance, yet it is well the Back of Jack Rafters,-. enough to know how it is done. Almost any roof is as good without as withthe hips backed, and when the roof is completed it isimpossible to tell which method was pursued. In caseswhere the…
