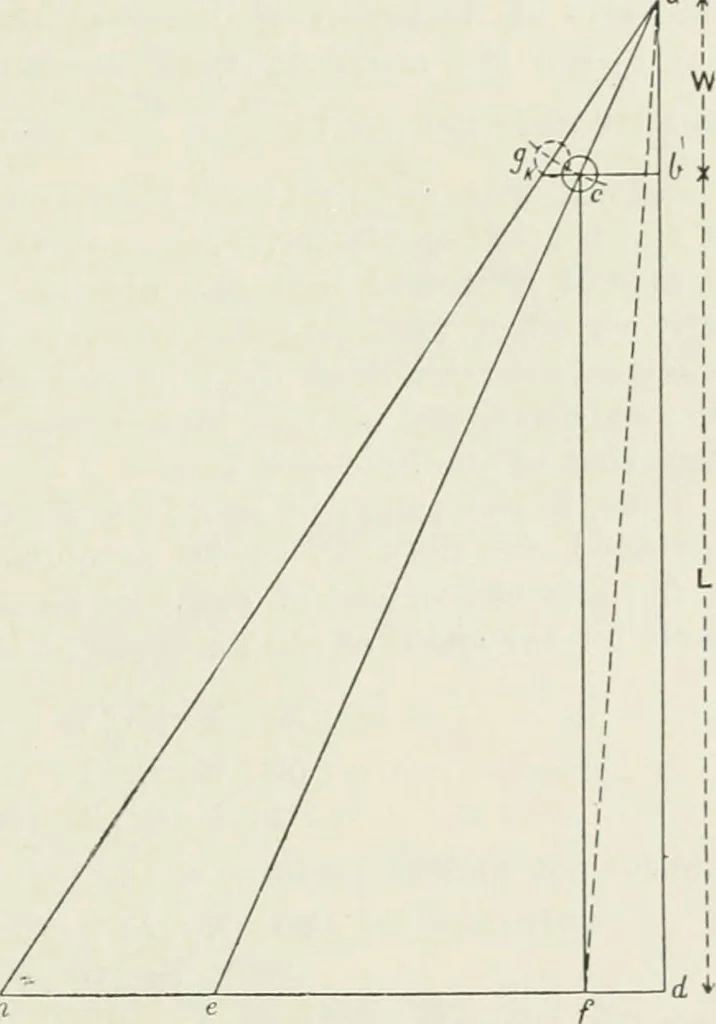

red from the diagramto the same scale of pounds as ab, is the centrifugal force necessary toplace the governor arm in this position, and the range of speed ofthe governor may be calculated, knowing the values of F in pounds,namely, de and dm for the respective positions of the arm. In Fig. 225, eh… … Fig. 22.0. 2o8 STEAM-ENGINE THEORY AND PRACTICE. Fi : r-2:: N^ : N/and ch . ed :, ah : adNi^: N/ :: W : W + L Ni:N,:: VW : VW + L Similarly, A:?> = Fg and m<i = F^, these being respectively thecentrifugal force without and with a central load, when the ball-armmakes an angle gab with the…
