Ripper, William, 1853-1937 · London, New York [etc.] : Longmans, Green and co. · leaf 356

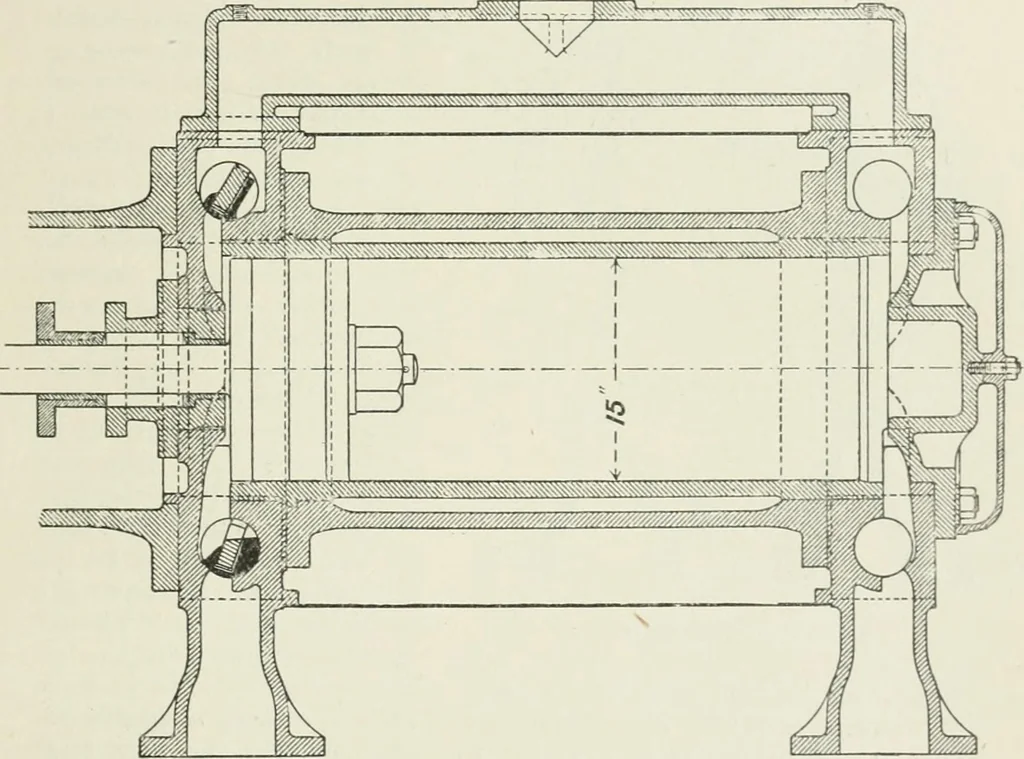

Fig. 383, the angular advance of the eccentricis made about 15°. The diameter of the valve = \ diameter of cylinder. The lengthof the steam-admission port = diameter of cylinder, and the widthof the port, as for all oidinary engines of the .slide-valve tyjje, = area of piston in square feet x… … Fig. 392. for a 15 in. X 28 in. X 36 in. cross-coupled compound engine, mainbearings 9 in. x 16 in., running at 105 revolutions per minute,developing 340 I.H.P. as a i-egular load, and 425 I.H.P. with anoverload, 160 lbs. boiler pressure, 26 in. vacuum. Figs. 392 and 393 are longitudinal and…
Steam-engines
