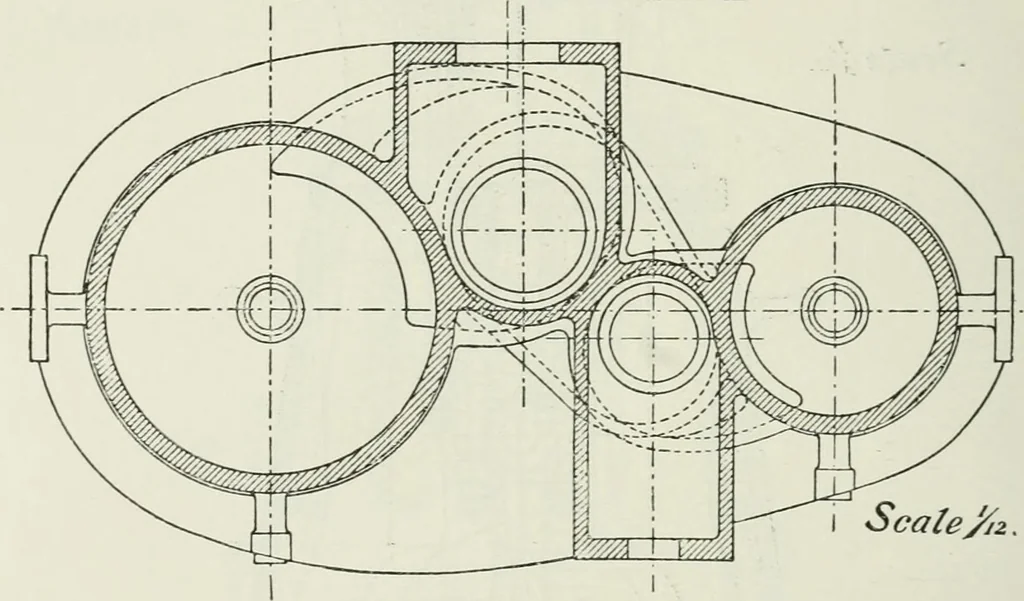

oil at a pressure of about 15 lbs. per square inch througha specially arx-anged system of oil-distributors shown in Fig. 408,which is a sectional elevation of the Belliss engine. Fig. 409 is aside elevation of the same engine.^ It will be seen that the steam is supplied to the engine after… … Fig. 412. There is only one slide-valve for the two cylinders placed betweenthe high and low pressure cylinders. It is of the piston type, andis driven by a single eccentric as shown. The governor is of the throttling type, working an equilibriumthrottle-valve (Fig. 409), and is adjustable by hand…
