Ripper, William, 1853-1937 · London, New York [etc.] : Longmans, Green and co. · leaf 446

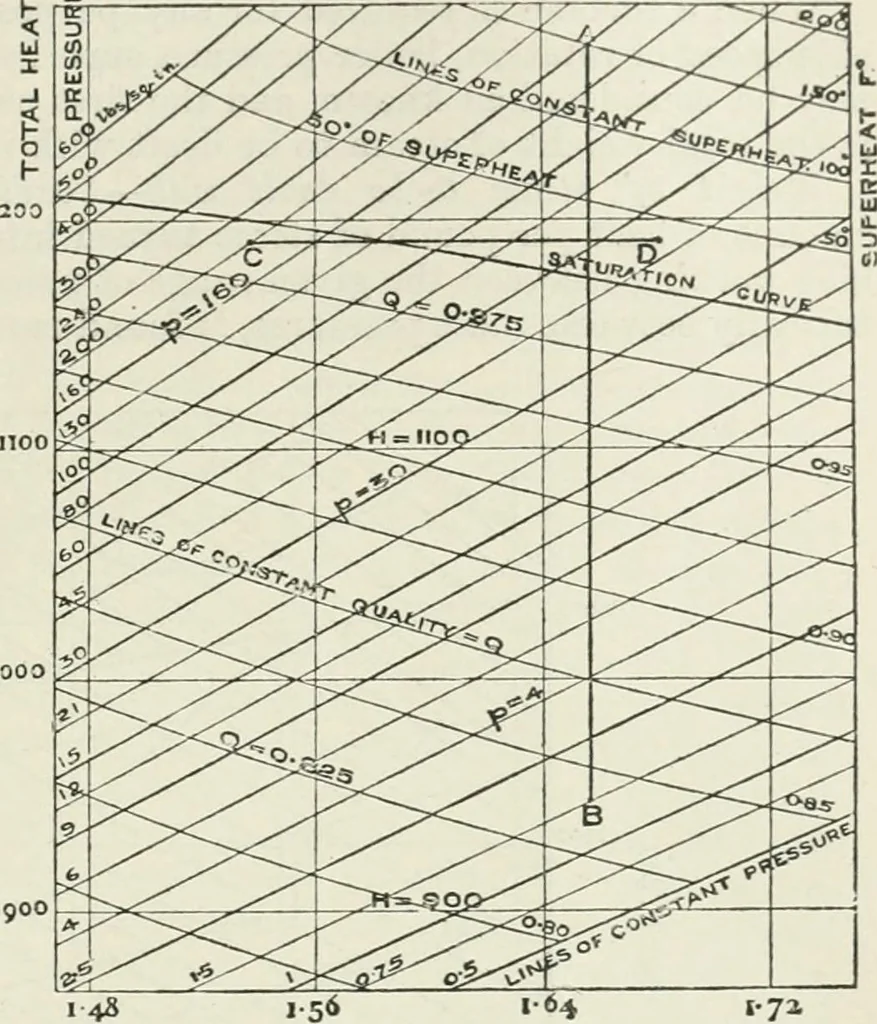

the new state of the steam ; the diagram shows the steam to have 32°of superheat. Example 3.—Find the velocity attained by the steam in Example 1.Measure the vertical line AB (Fig. 459) assuming it to be drawn onthe standard Mollier c-hart. Then by measuring off this length on thevelocity scale at… … Reaction Turbine. General Principles of Blading Design.—The calculations for theblades of a Parsons turbine are not dithcult from a theoretical pointof view. The limitations imposed by practical consiilerations, how-ever, cause the actual calculations to be a little more complex. Thus 424…
Steam-engines
