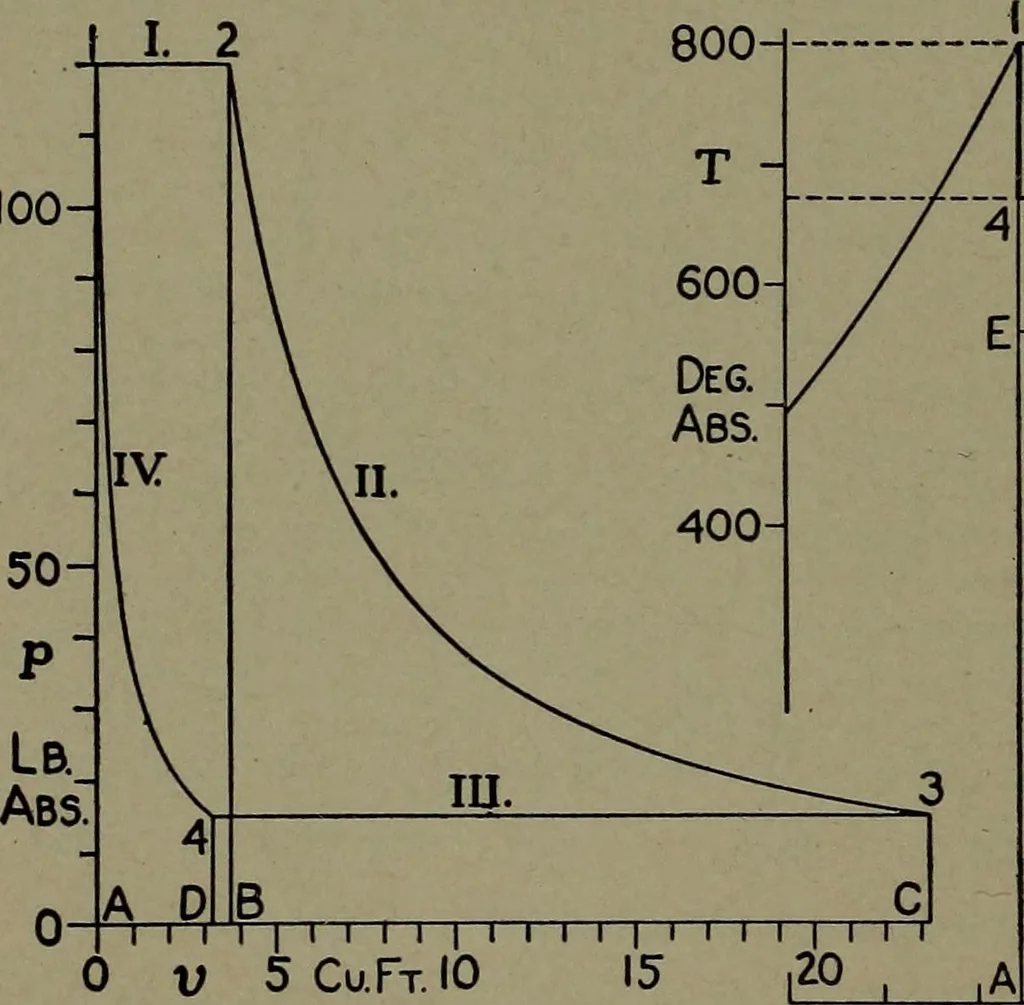

the absence of any workable relation between p and t, there doesnot appear to be any useful outcome in the way of a direct, simple rela-tion between pv and p. CHAPTER IVIDEAL STEAM CYCLES § 15. The Static Pressure Cycle (a) The Carnot Cycle with Steam. — With the physical condi-tions described in §… … 120 La 341.3 Deg.IV II. in. 15 LB. 213.0 Dec. I Lp. 101.8 Peg. N f.0 B Fig. 53. — Pressure-volume Diagramfor the Carnot Cycle. Fig. 54. — Temperature-entropy Dia-gram for the Carnot Cycle. These two diagrams are drawn for one pound of steam, and for the same govern-ing conditions; they give…
