The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 26

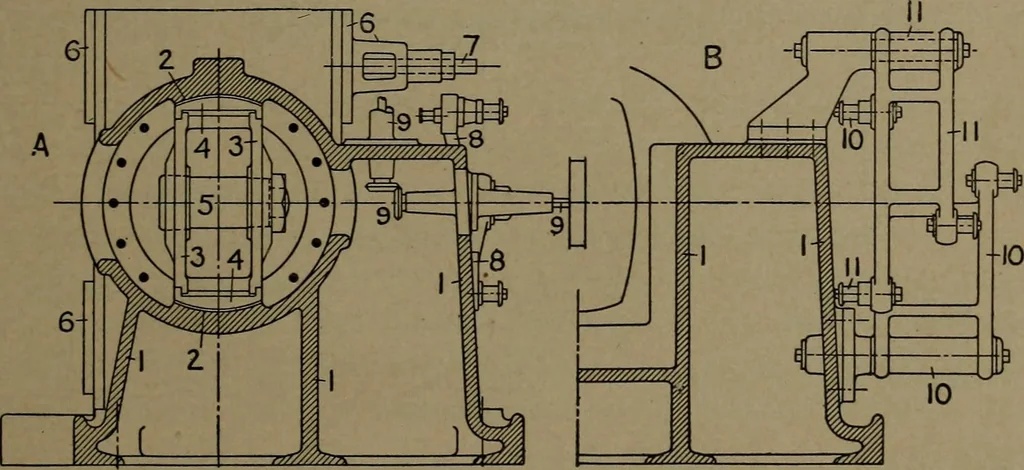

Fig. 5 1. Engine bed. 2. Bottom guides. 3. Top guides. Engine in Fig. 2) Cross Section at Guides. 4. Crosshead. 7. Rocker bracket. 5. Wrist pin. 8. Rocker arm. 6. Oil guard. 9. Oil tank. … Fig. 6. — Engine in Fig. 3, Cross Sections, A at middle of guides, B in front of guides, both looking toward cylinder. 1. Engine bed. 2. Guides. 3. Crosshead. 4. Crosshead shoes. 5. Wrist pin. •6. Valve bonnets. 7. Valve stem. 8. Wrist plates. 9. Governor base anddrive. 10. Steam rocker. 11.…Steam-engines · Steam-turbines
