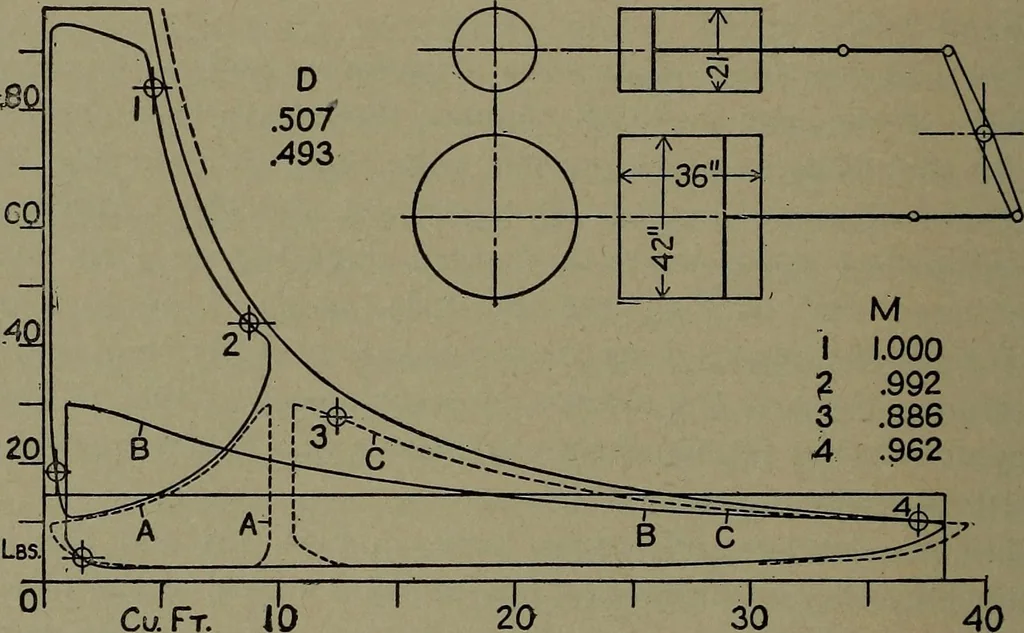

nce curve drawn outside the expansion curves is the satura-tion line, for one pound of steam, laid out from column 2 of Table II;and the extra curve, of which just the beginning is dotted in on Figs.129, 130, and 131, shows what would be the added volume of the steamcondensed in the jackets. Since… … Cu. Ft. Fig. 129. — Direct-expansion Engine with No Receiver. Holly duplex compoundpumping engine, 21 and 42 by 36 in., ratio 4.04, r.p.m. 20, full jackets. Engineat South Bethlehem, Pa., test by author in 1902. No. 34 in Table 13. line: but its volume is shown, very approximately, by the…
