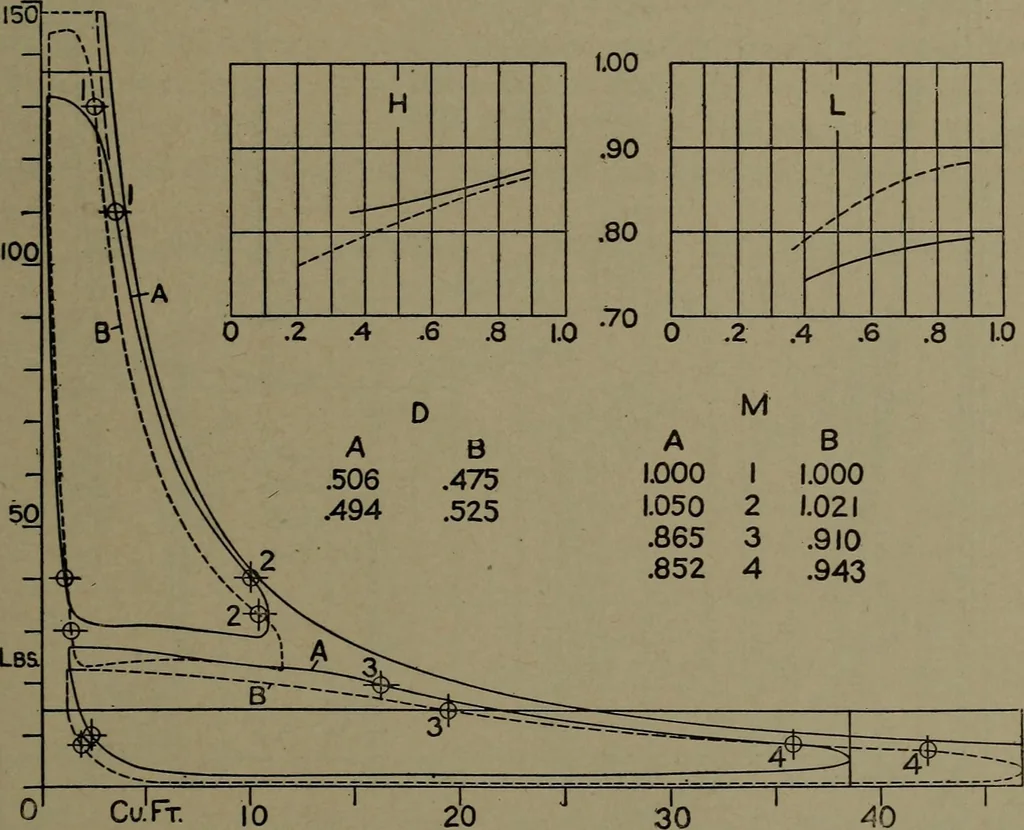

XAMPLES OF PERFORMANCE. 255 the resulting increase in the work of the low-pressure stage is the prin-cipal gain from jacketing. The different ways in which the productpv changes (as indicated under M) are also typical: it falls off muchmore rapidly without the jacket. Between these two engines… … A B 1.000 1 1.000 1.050 2 1.021 .865 3 .910 .852 4 .943 Fig. 136. — Comparison of Corliss Engines Without and With Jackets. A. Horizontal, cross-compound, plain receiver, no jackets, cylinders 30 and56 by 72 in., ratio 3.48, r.p.m. 65. J. E. Denton and others, 1893, Trans. A. S. M. E.,Vol. 15, Page…
