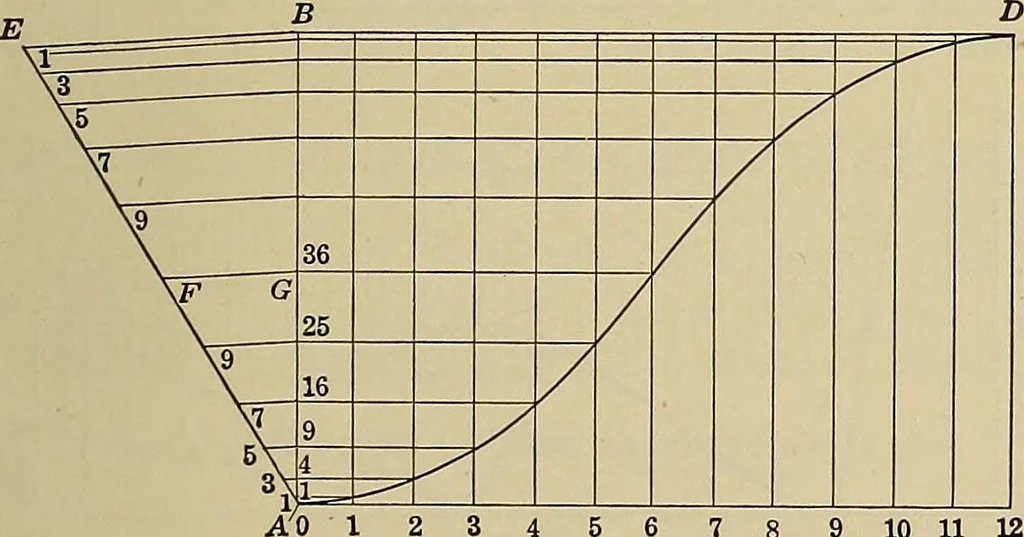

Fig. 9.—Correct division of the arc of motion. … 234 56 78 9 10 11 124 9 16 25 36 25 16 9 4 1 CFig. 10.—Laying out cams to the gravity base curve. High Speed Cams For high speed cams the throw circle is not a satisfactory base curve.It is well known that the crank motion, instead of being an easy,is a harsh one. In the center of the movement of…
