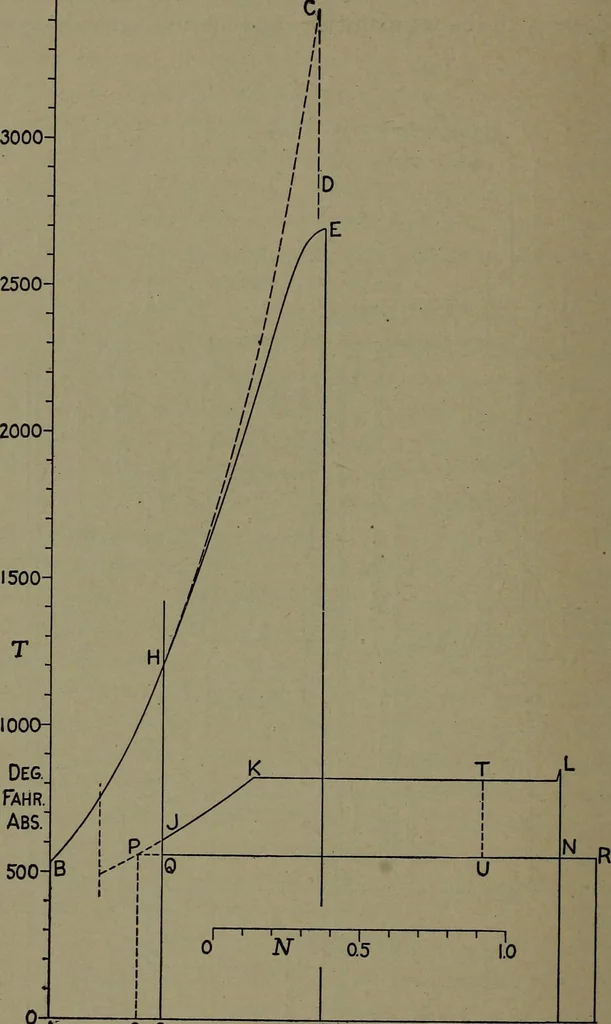

Fig. 141. — Diagram of Heat Distribution, for test A in Fig. 140. From ProfessorThurstons paper, Trans. A. S. M. E., Vol. 21, page 216. 274 PERFORMANCE AND EFFICIENCY OF ENGINES. [Chap. VI.3500-1 3000- 2500- … Fig. 142 0 G F MS Temperature-entropy Diagram for the Whole Plant. from the incandescent fuel and flame directly to the boiler surfaces,the resultant effect is as if the gases received heat according to somesuch curve as BHE: 2700 deg. abs. is a good, high furnace temperature,only exceeded with…
