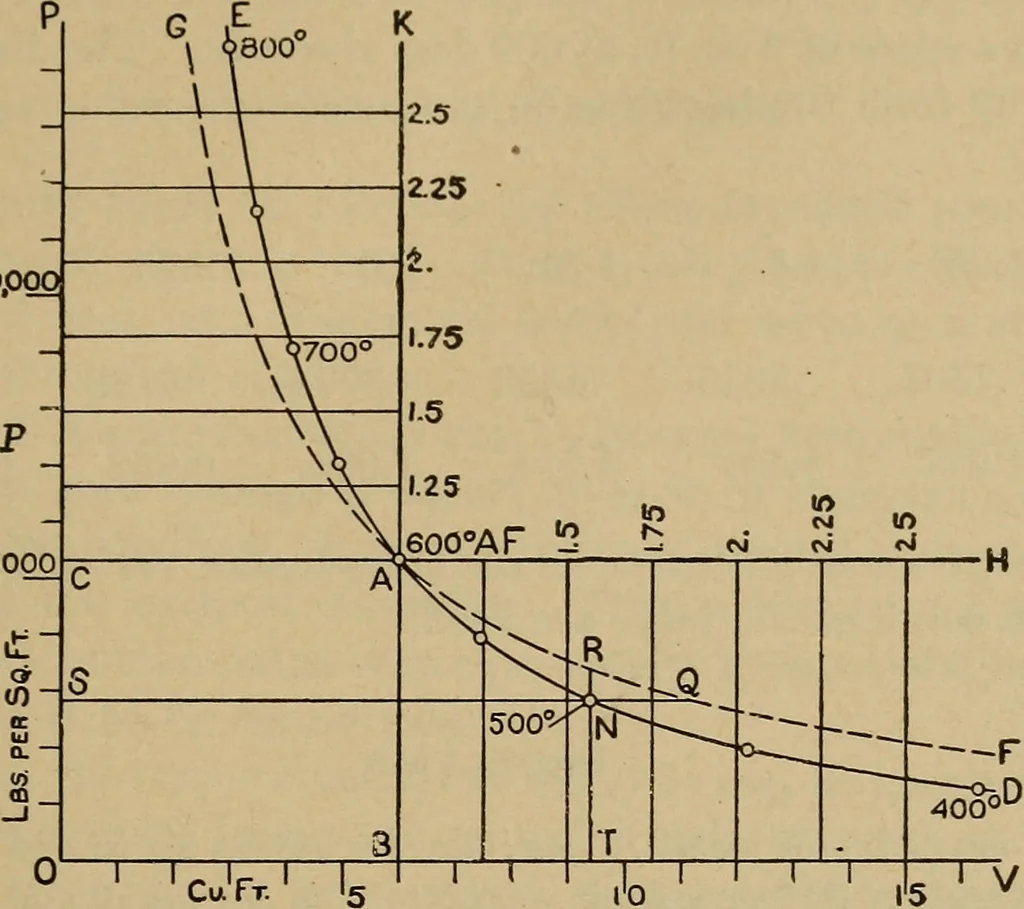

repre-sents a lower pressure in the gas than does the point R on the isothermal;and after expansion to a certain pressure, as OS, the gas under isothermalconditions fills a larger volume than does that expanded adiabatically. 7 U)] THERMODYNAMIC OPERATIONS WITH GASES. 47 In compression, the… … 5000 Fig. 32. — The Adiabatic Curve. (k) Plotting the Adiabatic Curve. -— The task of drawing theadiabatic or any other curve of the form pv^ = C, if it involved thecalculation of a set of coordinates directly from the equation, would Table 3. Factors for the Adiabatic Curve 1 2 3 1 2 3 1 2 3 Exp.^…
