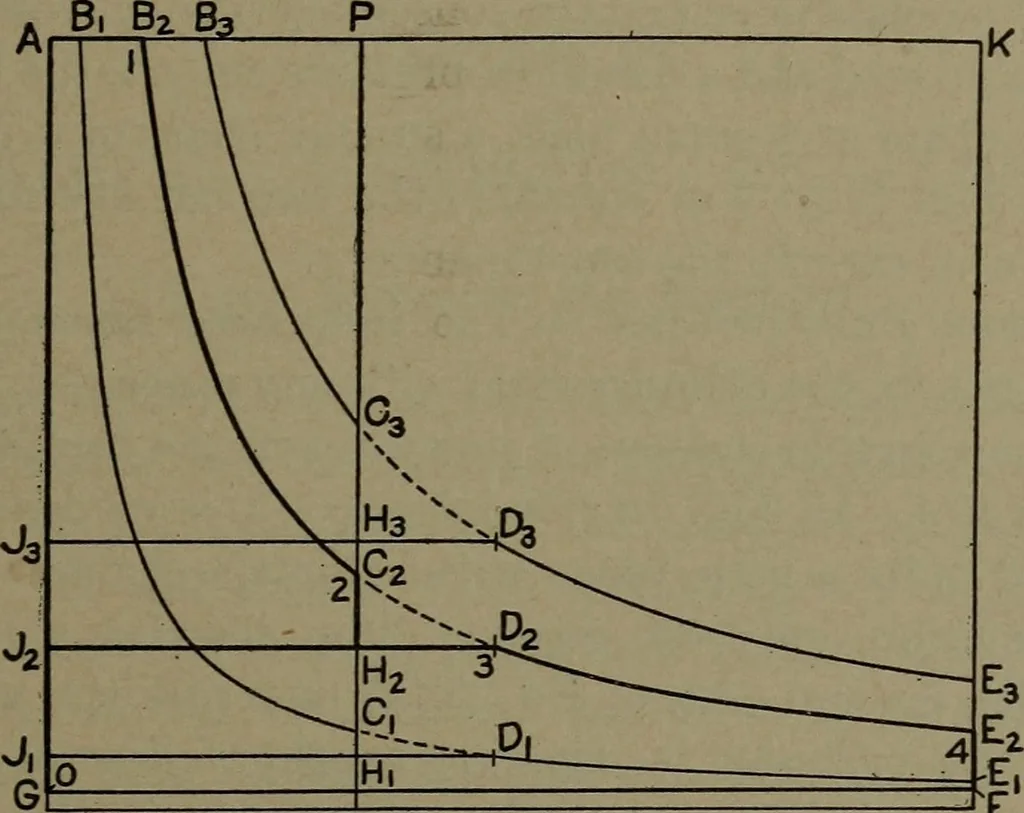

y, according to the reasoning of § 15 (gr). In the whole action,the receiver pressure varies over a comparatively narrow range. § 29 (g)] PROPORTIONING ENGINE CYLINDERS. 289 Fig. 152 shows the other type of relative valve action, the low-pressure cut-off remaining fixed while the high-pressure… … M Q N Fig. 152. — Constant Cut-off in the Low-pressure Cylinder. (h) General Relations. — The showing of Arts, (e) to (g) willnow be briefly summed up, for the two-stage engine, with the additionof a few almost self-evident conclusions as to the result of certain othervariations in condition. For…
