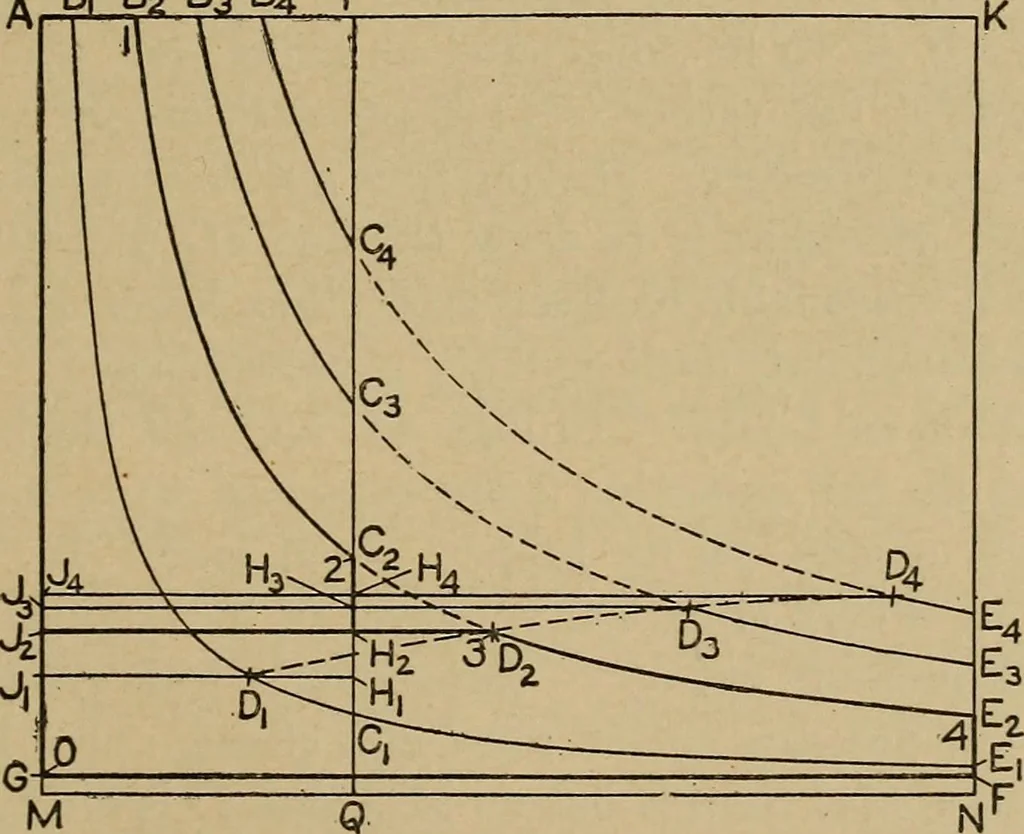

. 150 the expansions are cut short at the volumes indicated bydotted hnes in Fig. 149; and to equalize areas the cut-offs are moved upa little in stages 2 and 3, raising the receiver pressures above the orig-inal levels which are dotted in on Fig. 150. Usually, the amount cutaway from the last… … Fig. 151. — Diagrams Showing Equal Division of Work, with variation in the cut-off in both cyhnders. responding with the numbers 1, 2, 3, 4, and 0 on both diagrams, wehave the fundamental relation, PlVl = P2V2 = PzVz = PiVi. (145) 288 PERFORMANCE AND EFFICIENCY OF ENGINES. [Chap. VI. The areas are,…
