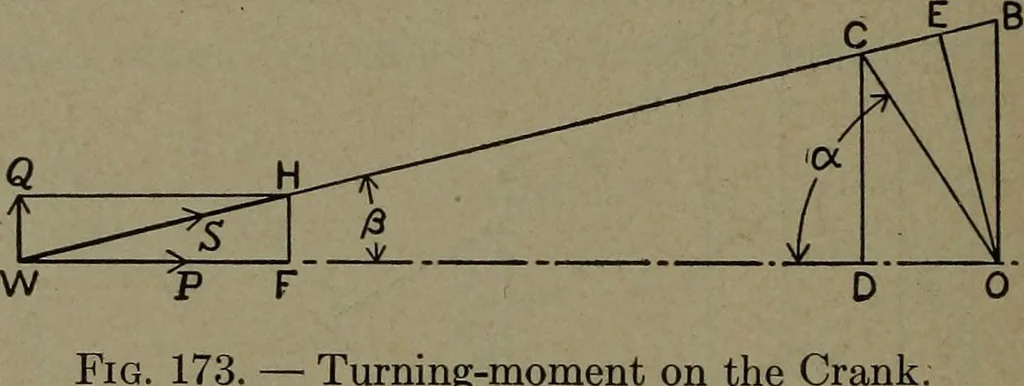

: OB, 314 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. or PXOB = £XOE = .M: (173) and the turning effect is just as though the force P acted upon thecrank with the lever arm OB. In the mechanism of Fig. 158, or with infinite connecting rod,the force P would be applied horizontally, or… … Turning-moment on the Crank. Replacing the moment M in Eq. (173) by that of a tangentialforce T at C, with the arm R, we have M = PX OB = TXR, or ^= OB xp = sin (a+ 0) p. (174) R cos p the geometrical relation being the same as that for the velocities inFig. 165, and Eq. (174) derived like Eq.…
