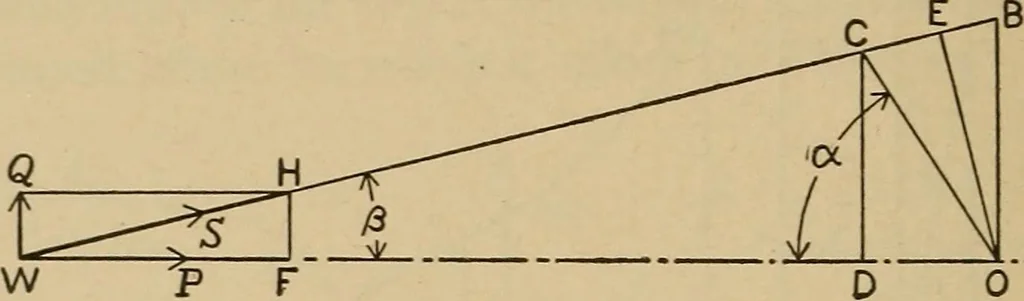

: OB, 314 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. or PXOB = SXOE = M (173) and the turning effect is just as though the force P acted upon thecrank ^\ith the lever arm OB. In the mechanism of Fig. 158, or Tsdth ^infinite connecting rod,the force P would be applied horizontally, or… … Fig. 173. — Turning-moment on the Crank. Replacing the moment M in Eq. (173) by that of a tangentialforce T at C, with the arm R, we have M = PX OB = TXR, or K cos /3 (174) the geometrical relation being the same as that for the velocities inFig. 165, and Eq. (174) derived hke Eq. (168). The…
