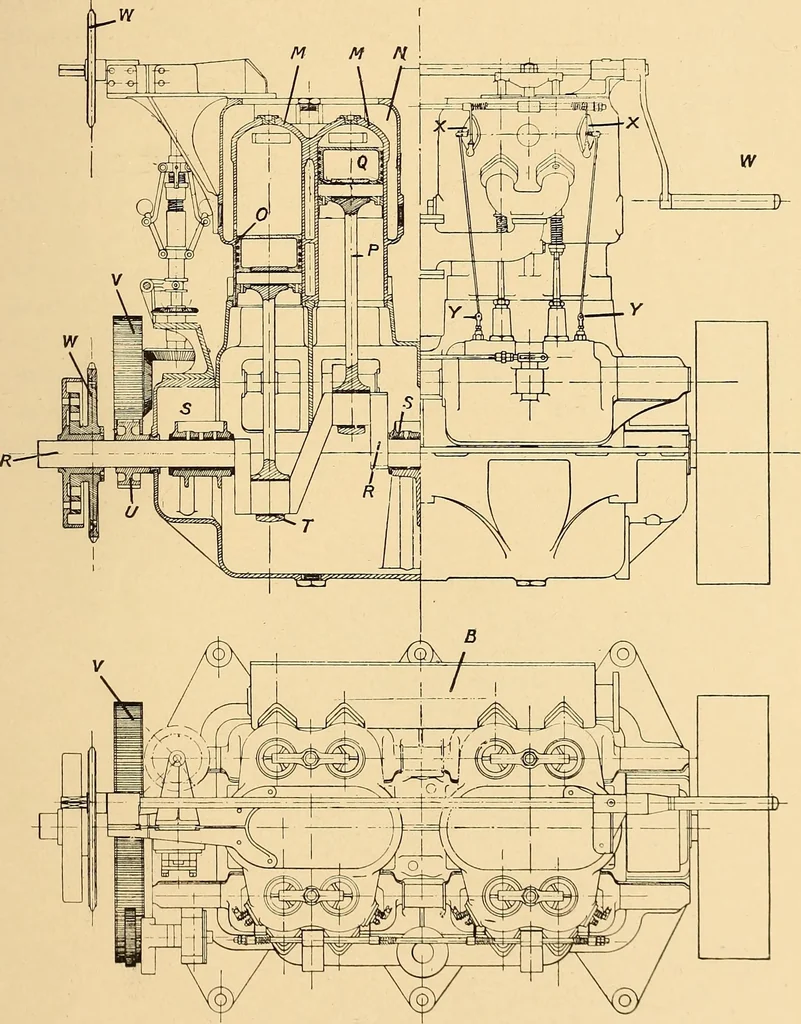

Marine Petrol or N surrounding them ; these water-jackets extend sufficientlyfar down to enable the working parts of the cylinders to becompletely covered. 0 is the piston fitted with five pistonrings ; P the connecting rod working on the gudgeon pinQ fitted with a solid bush. R is the crankshaft,… … Fig. 73.—General arrangement of Thornycroft G x 8 Marine Petrol orParaffin Engine—Side view. rods are adjustable, and it will be noticed that to assistlubrication the cap and bottom half brasses are left slightlynarrower than the top half. The pinion (T on the crankshaftdrives two fibre wheels V…
