The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 369

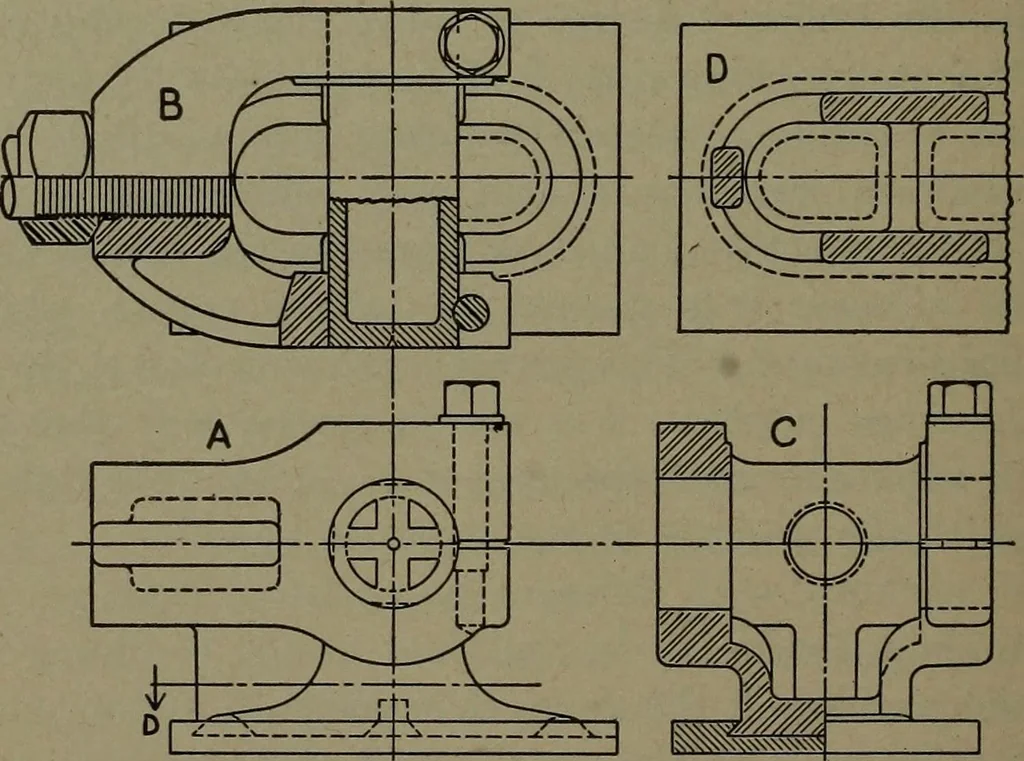

Fig. 208. — Crosshead from Engine in Fig. 2, of four-bar type. View D showsgrooves in bottom face which are filled with babbitt metal, so that rubbingsurface is partly babbitt, partly cast iron: view E shows how wrist pin is lubri-cated by oil caught from guides. Scale 1 to 10. … Fig. 209. — Crosshead of Slipper Type, with cast-steel body and cast-iron soleplate; hollow cast-iron wrist pin. with guides below and above in the plane of the mechanism, is the mostused. In general, any crosshead has the two functions of joining the con-necting rod to the piston rod and of…
Steam-engines · Steam-turbines
