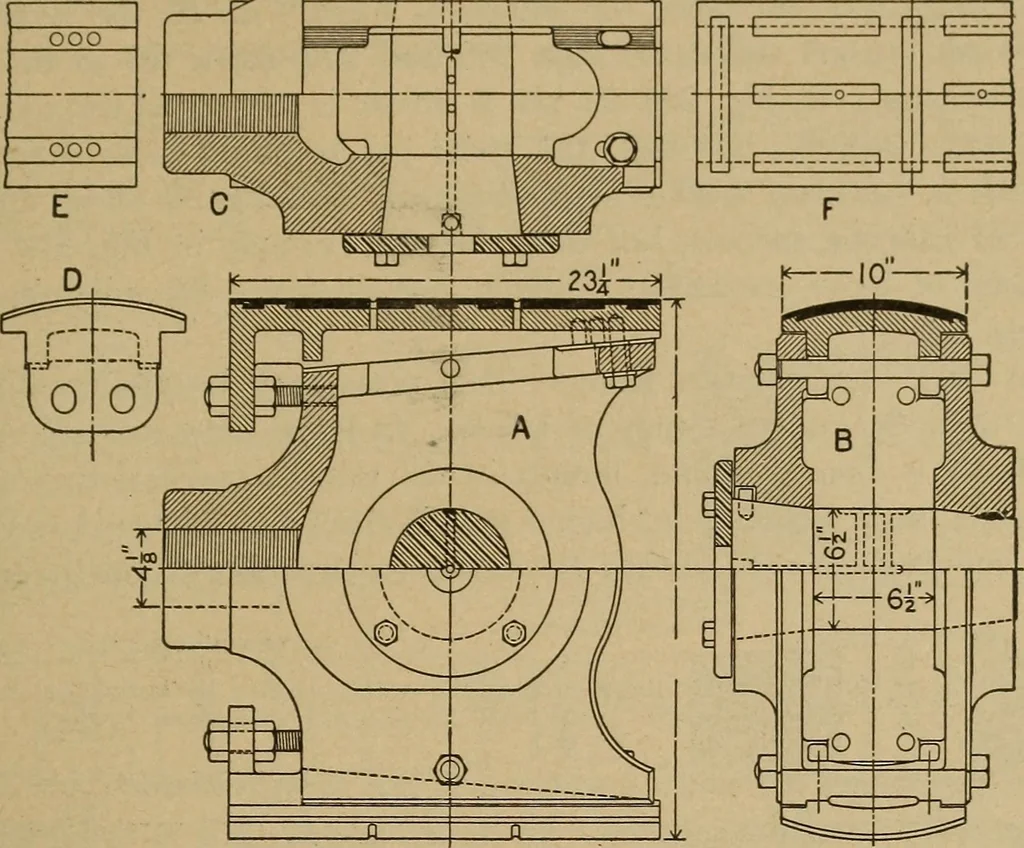

J Fig. 209. — Crosshead of Slipper Type, with cast-steel body and cast-iron soleplate;hollow cast-iron wrist pin. with guides below and above in the plane of the mechanism, is the mostused. In general, any crosshead has the two functions of joining the con-necting rod to the piston rod and of… … Fig. 210. — Crosshead of Block Type, for bored or cylindrical guides, as in Fig. 6,and with adjustable wedge shoes. View E shows inside of shoe, with holes forcap screws; view F shows dovetail grooves for holding babbitt facing. S^grz t 3
