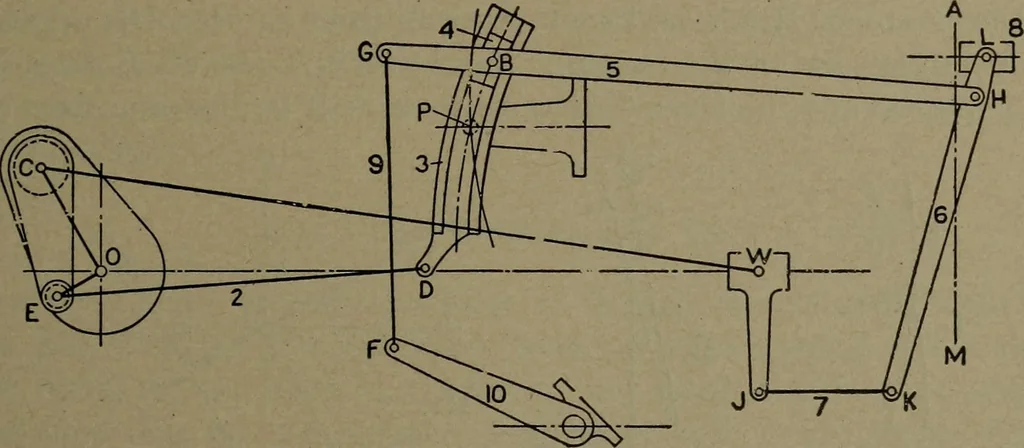

§ 40 (/)] REVERSING VALVE GEARS. 389 for the OE component there mayor may not be an actual eccentric at theshaft. A couple of examples will illustrate the working out of the idea.(g) The Walschaert Gear. — In Europe this is the most com-monly used valve gear for locomotives, and it has been coming… … Fig. 249. — Outline of Walschaert Gear. sufficient illustration. Motion taken from the crosshead at J is re-duced and reversed by the lever KHL, taking H as the fulcrum: thisgives the effect of a short arm opposite to the crank, like OE0 in Fig.248. The pin E, carried on a return crank from the…
