The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 448

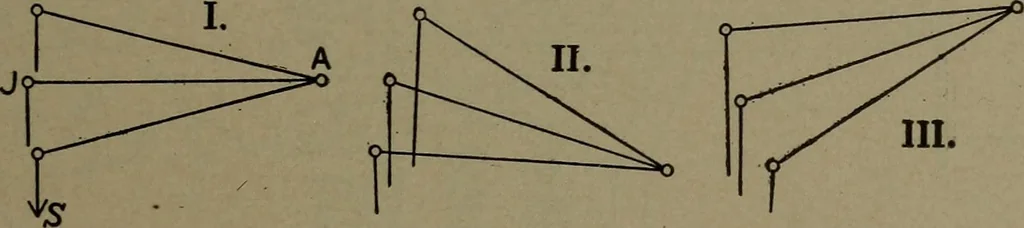

Figures 298 and 299 represent governors in which inertia as an activeinfluence during adjustment is intentionally given a prominent place,although both depend upon centrifugal force to determine the regula-tion. In these designs comparatively little effort is made to securegravity balance,… … Fig. 300. — Types of Spring Connection. change of the mass in the weight or ball, and change of spring tension;while some have provision for moving the point of spring connection,on the weight arm. Concerning the last matter, Fig. 300 shows dif-ferent types of spring action. In the first case, the…
Steam-engines · Steam-turbines
