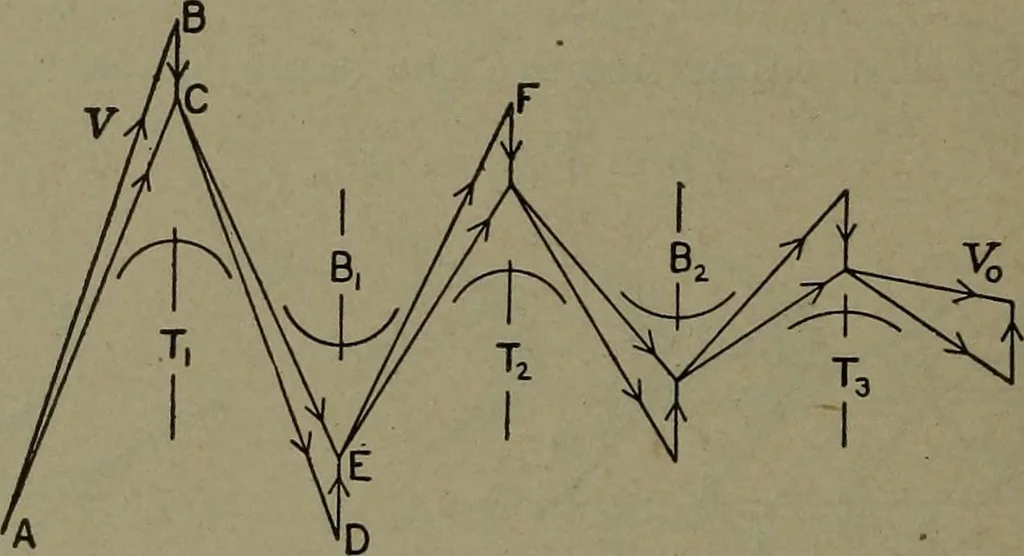

STEAM IN THE TURBINE. [Chap. IX. of velocity due to abstraction of energy — this on the assumption thatthe velocity changes are according to a diagram like Fig. 322, where Aremains constant. Only for the purpose of accommodating extra lossesof progressive velocity, as by friction and eddies, need… … Fig. 321. — Multiple-step Velocity Diagram. with the triangles in sequence, and showing how the bucket profilesare fitted to the lines of velocity direction. For the discussion of workrelations, the single-pole diagram in Fig. 322 is preferable. Here therelative velocities of entrance and of exit…
