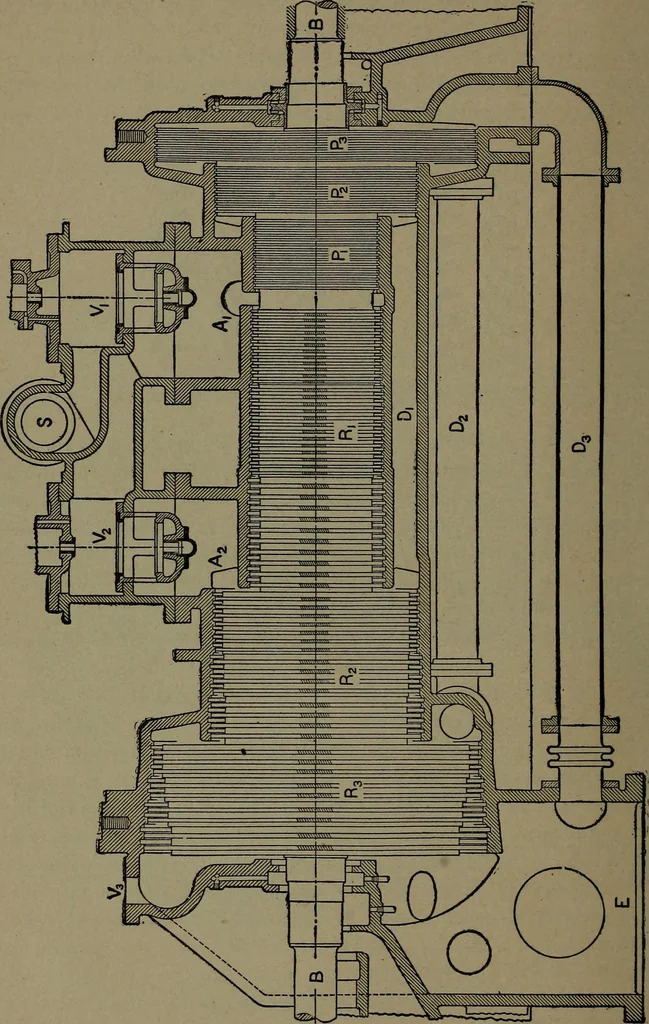

eneral pro-gressive flow across the vane rows, or parallel to the axis of the rotor.The whole matter is discussed and graphically exhibited in Chapter IX,where it is shown that this turbine is not purely of the reaction type, butthat there is also some little impulse exerted by the current in… … QQ a-u n o 5 o 02 o3 i a CO o bD.9 02 c3 CI .2 oC/2 CM di—i the rotor toward the low-pressure end: here the steam flows from rightto left. This enlargement, together with the increase in vane length,provides the necessary increase in cross area of steam channel. On theannular side of each step or…
