Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 546

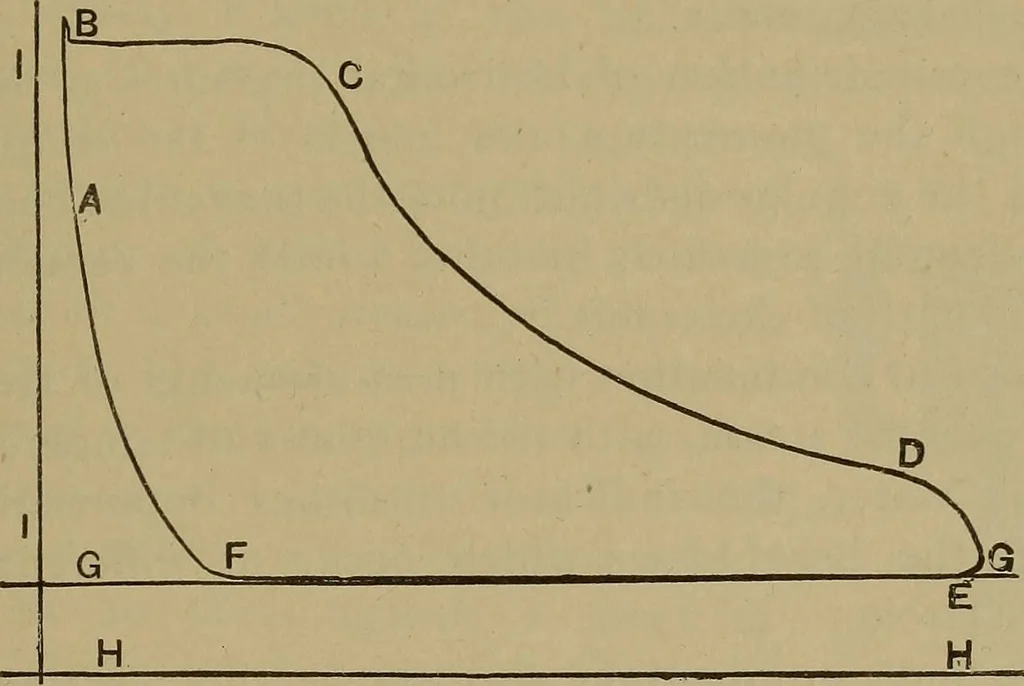

forethe society by a special committee appointed for that pur-pose. The new code is given in the Appendix to this volume ;it differs from the old one principally in the use of improvedmethods. CHAPTER XVI. THE STEAM-ENGINE INDICATOR. 378. Uses of the Steam-engine Indicator.—The steam-engine… … Fig 226.—The Indicator-diagram. The general form of the indicator-diagram is shown in Fig.226; the ordinates of the diagram, measured from the lineGGj are proportional to the pressure per square inch above theatmosphere; measured from the line HH, are proportional tothe absolute pressure per square…
