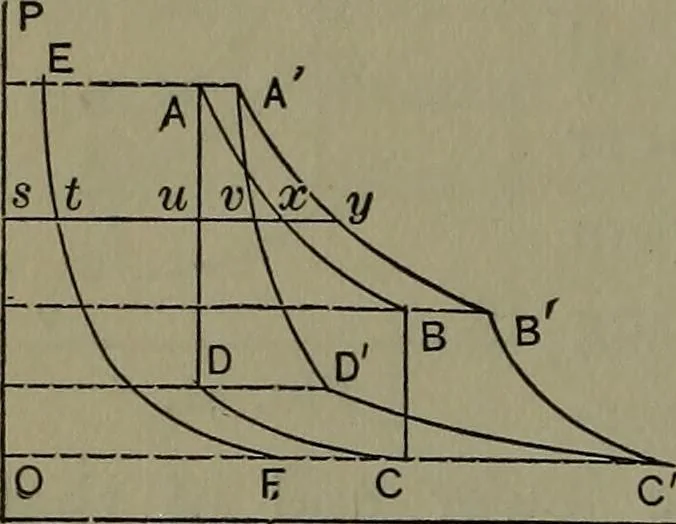

pressures will be representedc v- by the hyperbola EF. To find theFlG42, actual diagram ABC D, draw any horizontal line, as sy, cutting the true diagram at u and v,and the hyperbola EF at /; make ux and vy equal to st\ thenx and y are points of the actual diagram. The indicator willdraw an oval… … Tl-Py. Tc~Pc P* — pPy - CPr The diagram in Fig. 43 was reduced from an indicator-diagram from a recent hot-air engine made on the same prin-ciple as Stirlings hot-air engine. To avoid destruction of thelubricant in the working cylinderStirling found it advisable to con-nect only the cool end of the…
