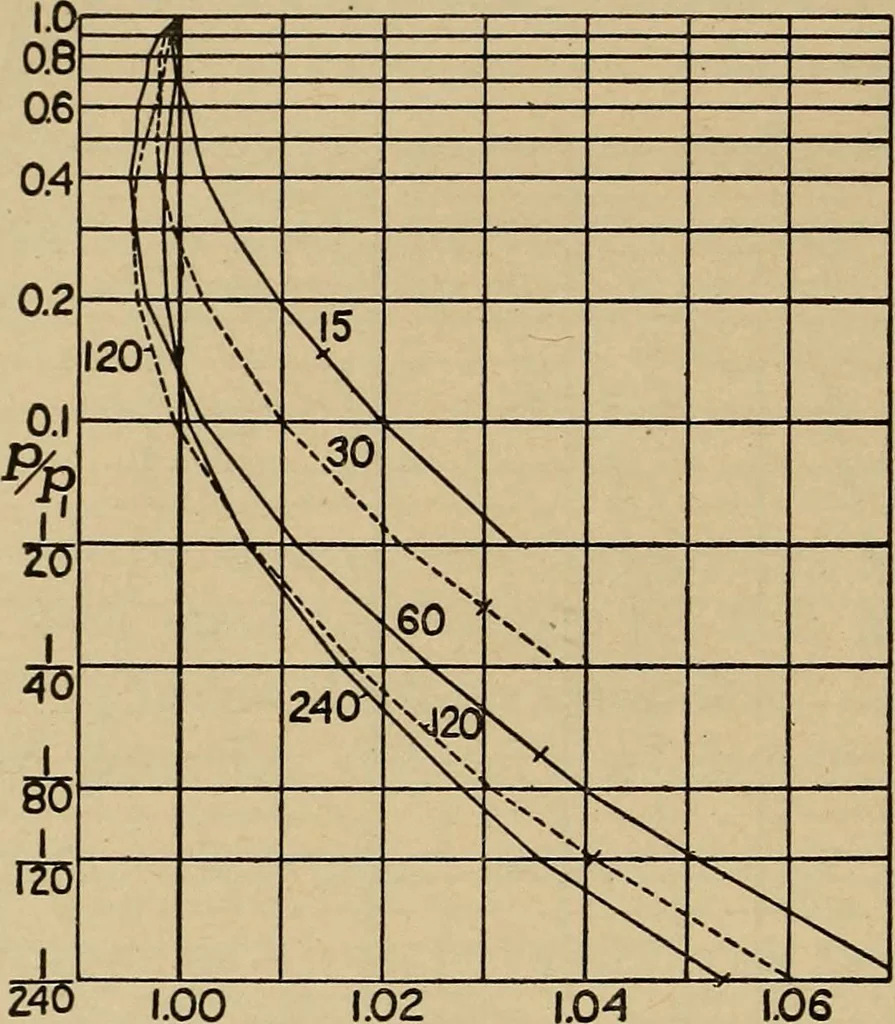

predominant as at H,there is condensation as the pressure drops, shown by the swing of the.T-constant lines CS and HR from the adiabatic • lines CM and HPtoward the right: steam is condensed to supply heat for external work.Starting with hot water as at B or with predominant water weight asat J,… … Fig. 50. — Comparison of Adiabatic Curves. Vertical base, ratio p/pi, to a scale made uniform for the logarithm of this ratio;horizontal ordinate, relation between values of the pv ratios in Table 5. water at the start, the two tendencies (toward condensation and towardevaporation) are just about…
