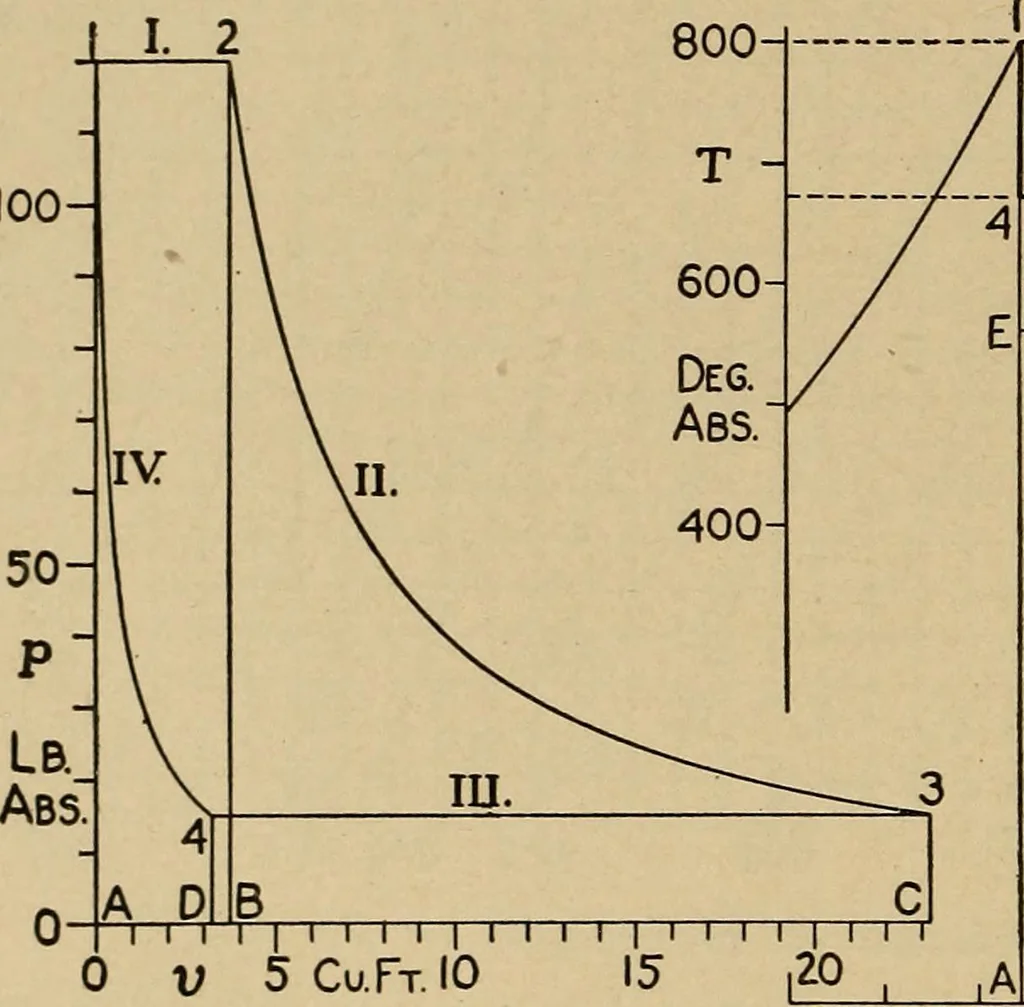

in the absence of any workable relation between p and t, there doesnot appear to be any useful outcome in the way of a direct, simple rela-tion between pv and p. CHAPTER IVIDEAL STEAM CYCLES § 15. The Static Pressure Cycle (a) The Carnot Cycle with Steam. — With the physical condi-tions described… … L 120 La 341.3 Dec. IV n. m. 15 Lb. 213.0 Dec. I LB. I0L8 Deg. N f.O I B Fig. 53. — Pressure-volume Diagram Fig. 54. — Temperature-entropy Dia-for the Carnot Cycle. gram for the Carnot Cycle. These two diagrams are drawn for one pound of steam, and for the same govern-ing conditions; they give…
