The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 277

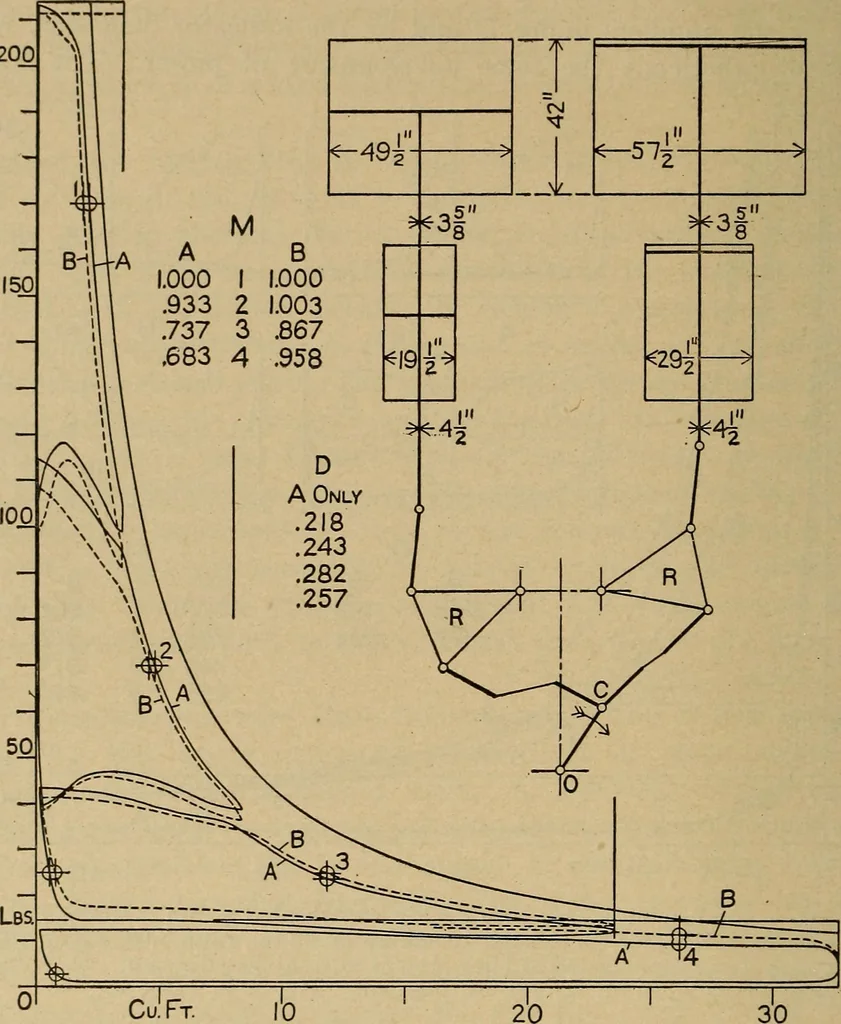

rface heater in the exhaust line,between the low-pressure cylinder and the condenser; it then goesthrough a series of four mixing heaters, being pumped from each lowerone into the next, in which there is a higher pressure and temperature. 262 PERFORMANCE AND EFFICIENCY OF ENGINES. [Chap. VI. Steam… … Fig. 140. — Engine with Regenerative Feed Heaters. Nordberg quadruple engineat Pittsburg; cylinder sizes given on diagram, ratio 9.08, r.p.m. 36.5, jacketsand reheaters. R. C. Carpenter, 1898, Eng. Record, Apr. 22, 1899; also R. H.Thurston, Trans. A. S. M. E., Vol. 21, page 203. No. 39 in Table 13.…
Steam-engines · Steam-turbines
