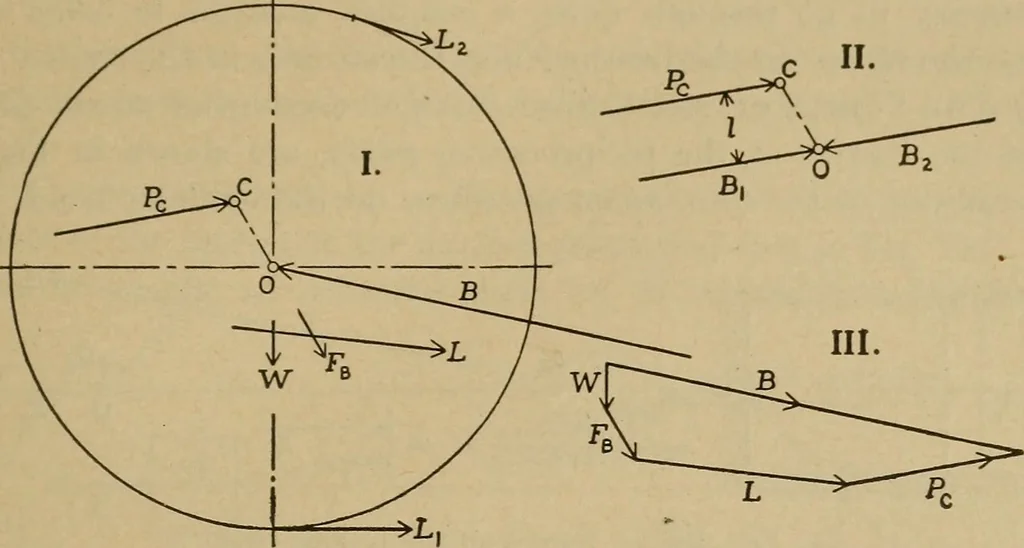

ead in its owndirection, as though a force Pi equal and parallel to itself were appliedat the center, and resisted by the equal and opposite reaction of thebearing; and will also exert a turning moment, that of the couple madeup of P and B2, tending to turn the body about 0. 30 (e)] FORCES IN THE… … Fig. 155. — Forces on Shaft and Wheel. Pc = pressure of connecting rod on crank pin.W = weight of whole rotating piece. L = resultant load force: here the power is supposed to be taken fromthe engine by a belt, the difference between the two tensions, Lion the tight or driving side and L2 on the…
