The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 323

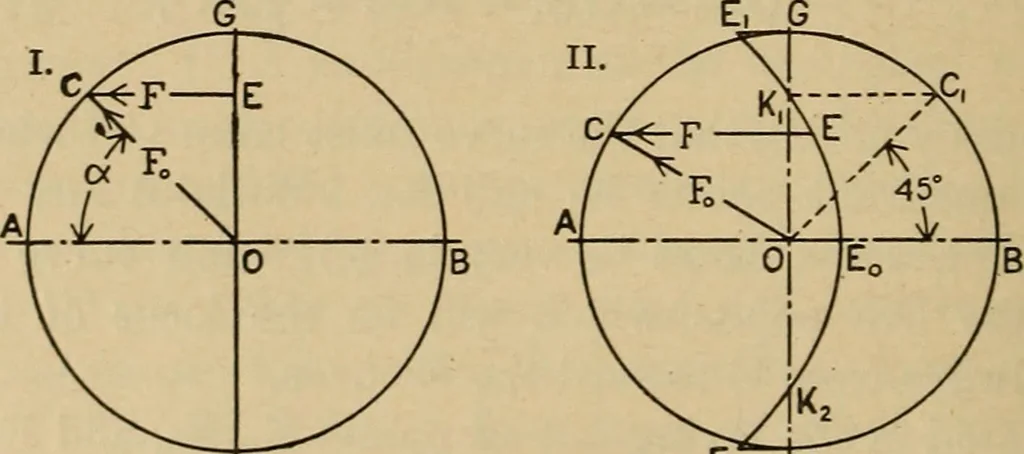

cos a:g R Wvlf g R\ R cos q; + y- COS 2 -) (170) W Vo . In either case, ^ is the centrifugal force which the reciprocating g K mass would have if it were concentrated around the crank-pin center C: this ideal centrifugal force will be called Fq, and the actual inertia force is then a component of… … H ^^ H Fig. 168. — Circular Diagrams of Inertia Force. of force, it must be remembered that accelerating force will pointtoward the center 0 or toward the limit line GH or E1E0E2; while § 32 (a)] WORKING FORCES IN THE ENGINE. 309 inertia force will point outward, or away from the middle of the…
Steam-engines · Steam-turbines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
