The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 324

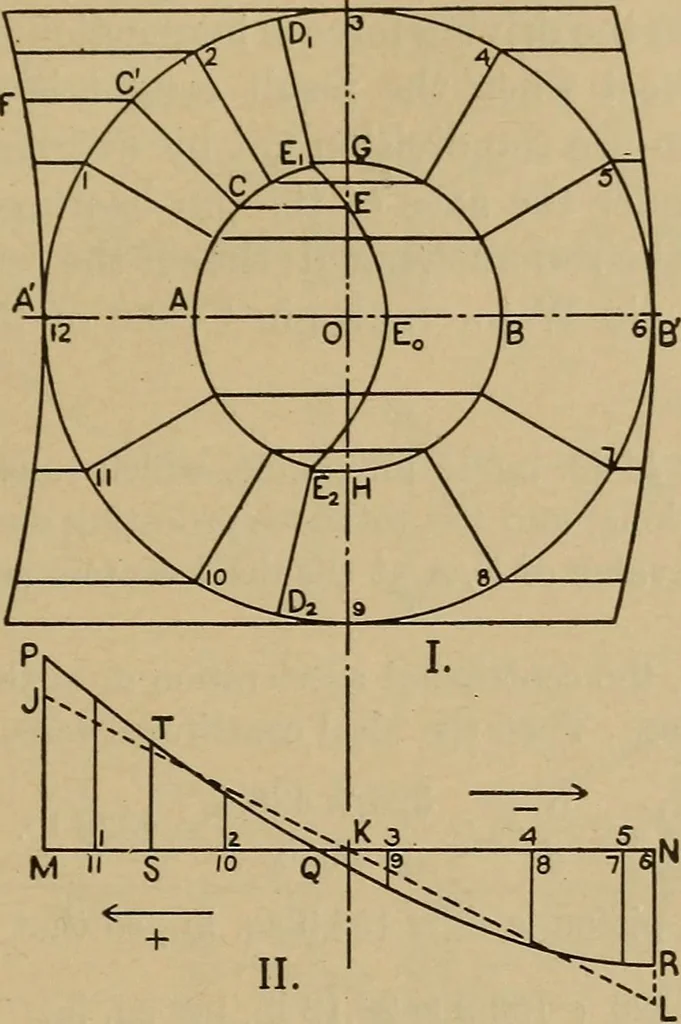

orce will point outward, or away from the middle of the dia-gram. This is illustrated in Fig. 168, where the two cases as to formof mechanism are separated, the two diagrams embodying Eqs. (171)and (172), respectively. These diagrams are not, however, in a shape suitable for the directcombination… … Fig. 169. — The Stroke-line Diagram of Inertia Force. the diagram from Fig. 168 II is surrounded by another diagram, forpiston position, hke Fig. 163. From this we get the two coordinatesfor the curve in II, the abscissa s = MS at FC, the ordinate i^ = STat CE. For the actual mechanism this gives…
Steam-engines · Steam-turbines
