The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 354

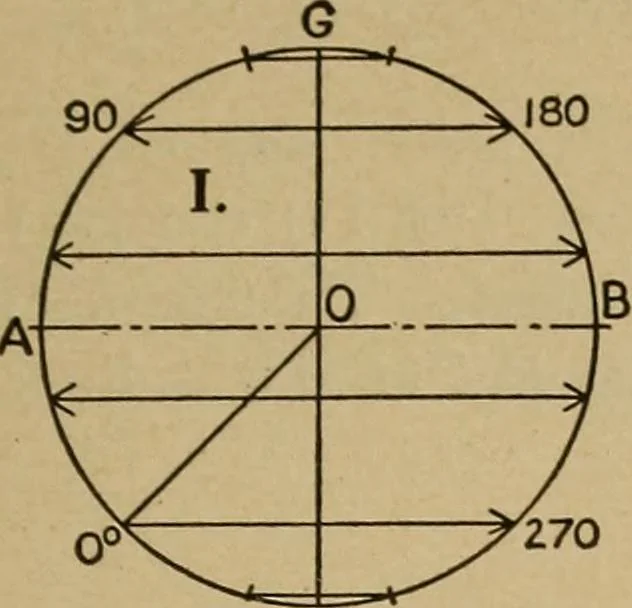

estigation are expressed in complete graphical form by Fig. 195. The circle in I is drawn with 1.414 (Fo — Fb) as radius, Fb standing for either F3 or F4 on Fig. 193. The zero of the Fig. 194. — Combined Radial Effects. 35 (d)] BALANCING THE ENGINE. 339 angle scale is located at the position which… … c. ^ -0 /K J, A
Steam-engines · Steam-turbines
