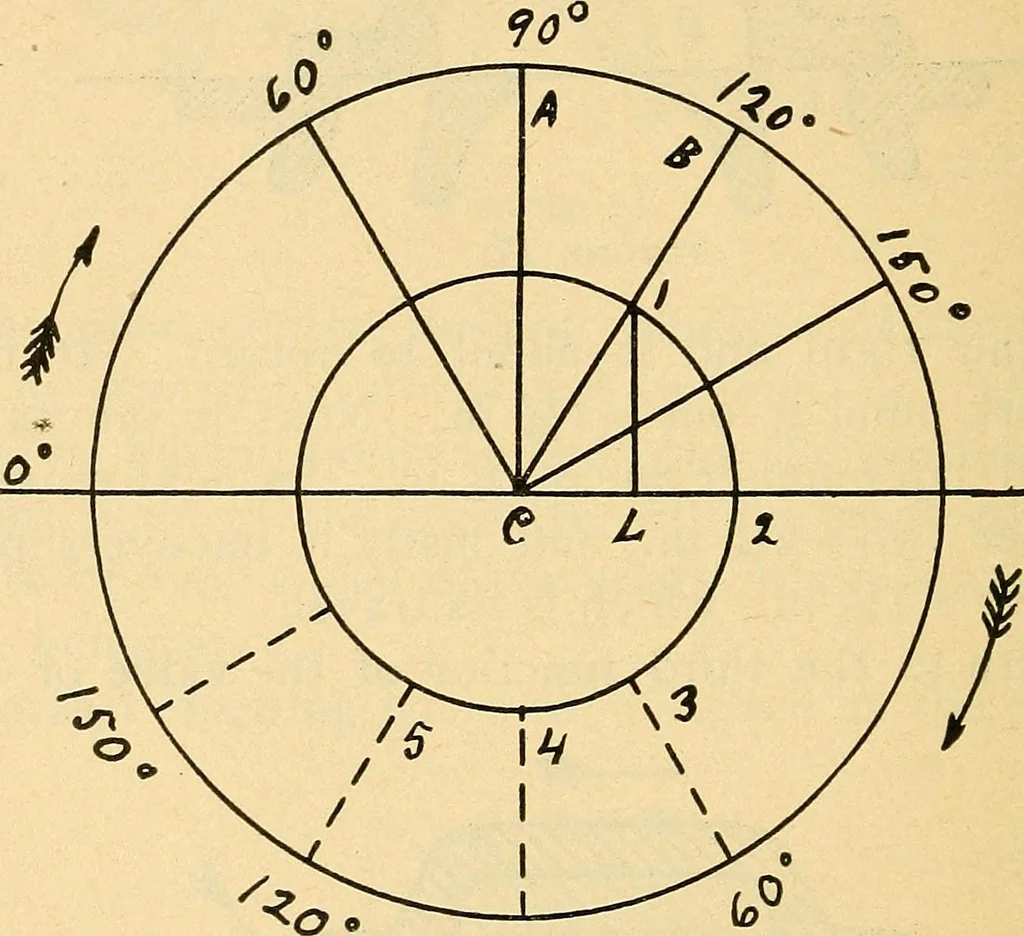

end of the cylinder, Fig. 17. The crank is 138 ENGINEERING now at 1500, the piston being near the end of the strokeand the eccentric has reached 900 of the return circleor three-quarters of the crank circle, while the crankhas still to travel 300 in order to complete the first one-half of its… … /to 90* FIGURE 19. but by adding inside lap, compression can be causedto take place earlier and release later. The next event is admission at the head end of thecylinder, Fig. 18. The crank has now arrived at 1800,having completed one-half of a revolution; the pistonis at the end of the stroke, and…
