The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 354

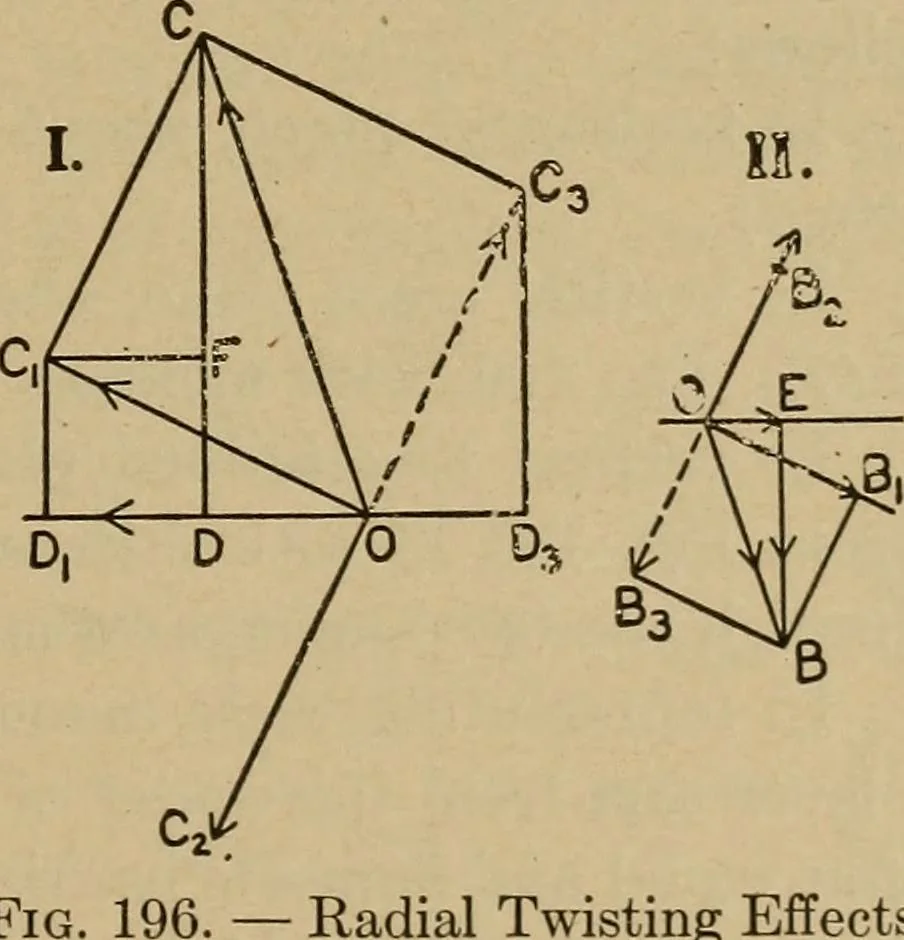

the algebraicsum of the two forces in this position— which is the same as their alge-braic difference with F2 in its actualdirection — is a resultant free forceacting at the end of the radius a togive the engine an angular accelera-tion about a vertical axis through thecenter of mass. Calling this… … Fig Radial Twisting Effects. (200) 340 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. In Fig. 196, the reversal of F2 in bringing it into the hne of Fi isrepresented by the reversal of the Fq for the left side, from OC2 to OC3: then the major part of the force Th is the horizontal component of…
