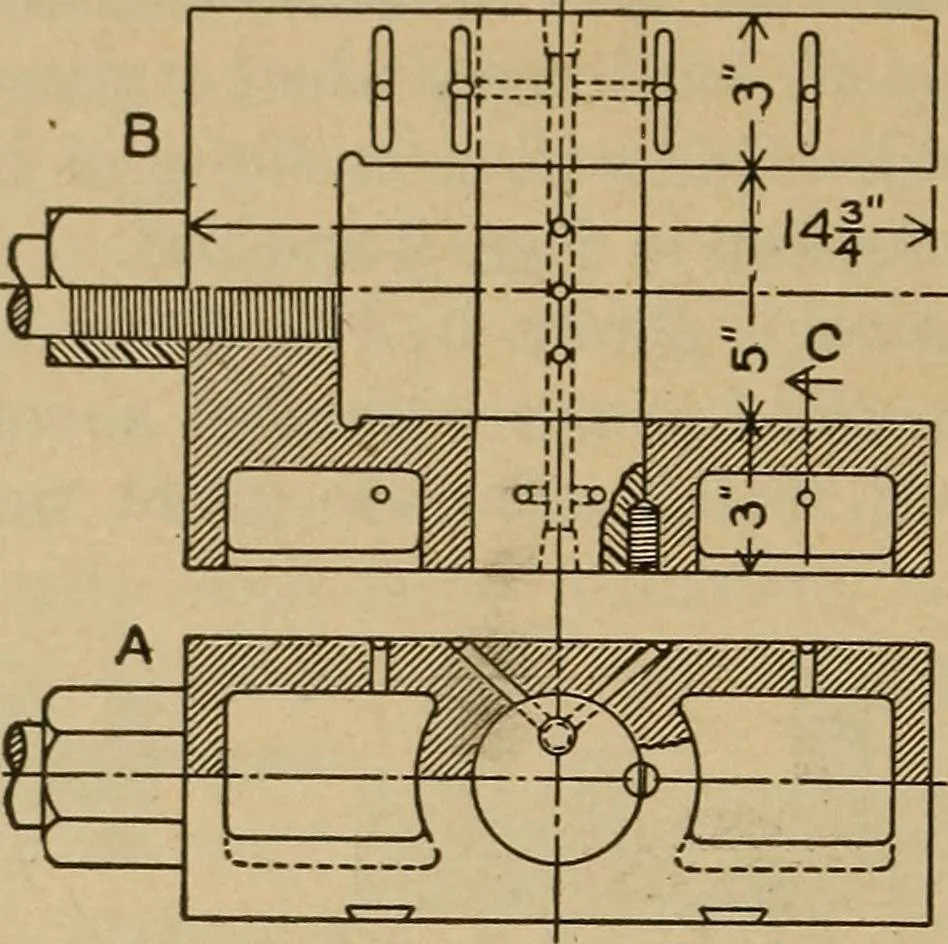

type, with brass rubbingrings. (g) The Crosshead. — The three t^i^ical forms of this piece are,four-bar or wing crosshead of Fig. 208, the slipper type in Fig. 209,and the block or trunk form in Figs. 210 and 211. The first requiresfour guide bars, two at each side, and is little used; the second… … i c V. - k A ■I .—\ I o ■—p J L..__. o 1
